PW2LN03BP | Pressure,Wet,2Wr,NEMA4,LCD,NIST,0-50PSID | Veris

12 to 24 VDC Input 4 to 20 mA Output Wet Media Differential Pressure Transducer with LCD Display, 0 to 50 psig, NIST, Bypass Assembly

Brand: VerisSKU: PW2LN03BP

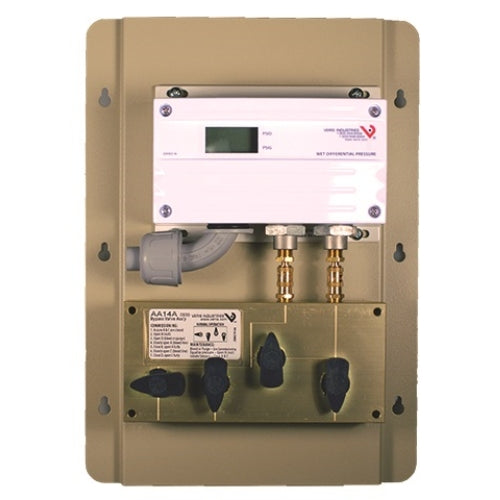

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PW2LN03BP

Jump to: Overview & Specifications Reviews

Overview Details for PW2LN03BP

The PW2LN03BP series 2-wire, 4 to 20 mA wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW2 series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors and other non-corrosive wet media applications.

LCD Display
Operational Range: 0-50 psig
Application Flexibility: The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation
Rugged, die-cast enclosure provides NEMA 4 sealing
Selectable differential units: psid or bard
Dual sensor design for improved overpressure tolerance, eliminates the requirement for a bypass valve assembly in most applications
Jumper-controlled electronic surge dampening for high stability
Pushbutton zero calibration - no trim pots to adjust, maintain accuracy and reduce callbacks with automatic zero calibration
2-wire transmitter output
User-selectable output
NIST certified
2 times of maximum full scale range proof pressure
5 times of maximum full scale range burst pressure
Mounted bypass assembly

Optional Accessories: AA11, AA12, AA13

Specifications

Item Number	PW2LN03BP
Brand	Veris
Application Zone	Plant Room
Application	Pump and Compressor Differential Pressure \| Chiller Differential Pressure Monitoring
Brand	Veris
Burst Pressure	250 psi (17 bar)
Calibration Certificate	NIST Certificate
Dimension Depth	2.6" (67 mm)
Dimension Height	12" (305 mm)
Dimension Width	8.7" (221 mm)
Display Size	0.7" x 1.4" (17 mm x 36 mm)
Display Type	LCD
Electrical Wiring	2-wires (loop-powered)
Enclosure Material	Powder Coated Aluminium
Fitting Material	Stainless Steel
Fitting Size	1/ 8” NPT
Fitting Type	Female
IP Protection	IP65 (NEMA 4)
Measurement Type	Differential Pressure
Medium	Water
Model	PW2LN03BP
Mounting	Panel
Operating Current	29 mA
Operating Humidity	0 - 90% RH; non-condensing
Operating Temperature	-4 - 130 °F (-10 - 55 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Pressure Measurement Accuracy	Range A; B and C: ±1% of F.S. Range D: ±2% of F.S.
Pressure Measurement Range	0 - 5 psi (0 - 0.3 bar) \| 0 - 10 psi (0 - 0.7 bar) \| 0 - 25 psi (0 - 1.7 bar) \| 0 - 50 psi (0 - 3.5 bar)
Product Certification	CE
Product Type	Sensor
Range	PW2
Standards EMC	EN 61000-6-1
Supply Voltage DC Range	12 - 24 VDC
Warranty	5 years
