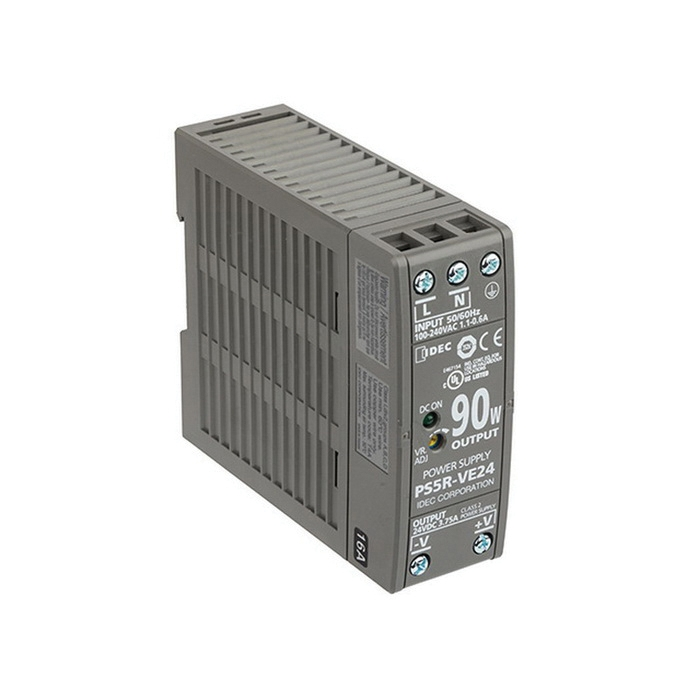

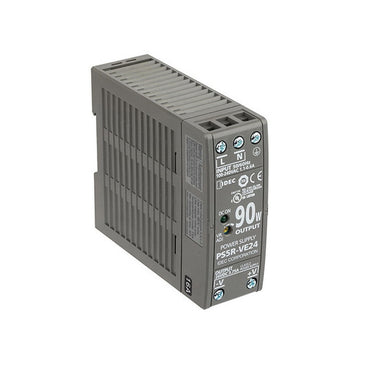

PS24-S90W | PS5R-VE24,Power Supply,24VDC,90W | Veris

24 VDC Switching Power Supply, 90 W

Brand: VerisSKU: PS24-S90W

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for PS24-S90W

Ideal for supplying loop power to Veris power transducers and current sensors
DIN rail mounting - easy installation
Small size - saves panel space
High efficiency - won't generate excessive heat in control panel
High efficiency switching power supply capable of supplying 90 W
Over current protection - 105% minimum auto reset
Captive M3.5 Philips/flat heads screws terminal, spring-up, finger-safe (when tightened)

Item Number	PS24-S90W
Brand	Veris
Application	Building Automation Systems
Current Protection	Circuit Breaker
Model	PS5R-VE24
Mounting	DIN
Operating Temperature	14 - 140 °F (-10 - 60 °C)
Power Consumption	90 Watts
Power Input Frequency	50 - 60 Hz
Product Certification	UL \| CE
Product Type	Power Supply
Range	PS series
Secondary Voltage AC Nominal	24 VDC
Secondary Voltage DC Nominal	24 VDC
Secondary Voltage DC Range	22 - 26 VDC
Standards	EN61204-10
Supply Voltage AC Nominal	100 VAC - 240 VAC
Supply Voltage AC Range	85 - 264 VAC
Warranty	2 years
