PHX07S | Pressure | Wet | Panel | 0-100PSIG | Veris
1% Accuracy Digitally Controlled Gauge Pressure Transducer, 0 to 100 psig

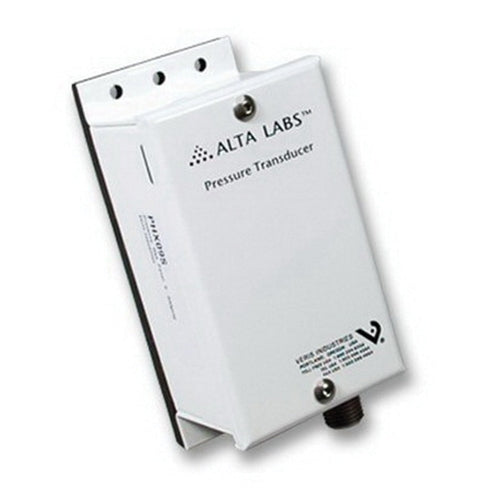

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PHX07S
Documents and manuals
Veris PHX07S Documents
Overview
Details for PHX07S
Pressure | Wet | Panel | 0-100PSIG
The PH Series pressure transducers are designed for steam, air, gas, and liquid pressure measurement in all media compatible with 17-4PH N8 stainless steel. They utilize a microprocessor controlled sensor profiled for exceptional accuracy and reliability. All models feature three switch-selectable ranges and a “test mode" to verify wiring and panel input scaling. A pushbutton and digital input terminal is used to automatically zero the output, and the microprocessor guards against accidental zero adjustment during operation. The field-selectable output, offering options of 0-5V, 0–10VDC, or 4-20mA, ensures excellent systems compatibility. Jumper controlled surge damping is provided on all models to reduce false alarms.Specifications
Item Number | PHX07S |
Brand | Veris |
Application Zone | Plant Room |
Application | Pump and Compressor Monitoring | Gas Pressure | Energy and Water Management | Refrigerant Equipment Monitoring |
Brand | Veris |
Burst Pressure | 500 psig (34 bar) |
Calibration Certificate | No |
Dimension Depth | 2.2" (56 mm) |
Dimension Height | 5.1" (129 mm) |
Dimension Width | 2.5" (56 mm) |
Direction | Unidirectional |
Display Type | None |
Electrical Wiring | 3-wires |
Enclosure Material | Powder Coated Steel |
Fitting Material | Stainless Steel |
Fitting Size | 1/4" NPT |
Fitting Type | Male |
LED Indicator Type | Red and Green |
Measurement Type | Gauge Pressure |
Medium | Water |
Model | PHX07S |
Mounting | Panel |
Operating Humidity | 0 - 90% RH; non-condensing |
Operating Temperature | 14 - 130 °F (-10 - 55 °C) |
Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
Outputs | Analog output |
Pressure Measurement Accuracy | ±1% of F.S. |
Pressure Measurement Range | 0 - 100 psi (0 - 7 bar) |
Pressure Range | 0-100 psig |
Pressure Sensor Type | Guage |
Product Type | Sensor |
Range | PH |
Sensor | Pressure |
Supply Voltage AC Nominal | 24 VAC |
Warranty | 5 years |
