PG08AV | Pressure | Gauge | 250psig | 0-10VDC | 316SS | Veris
316L Stainless Steel Wetted 0 to 10 VDC Gauge Pressure Sensor, 0 to 250 psig

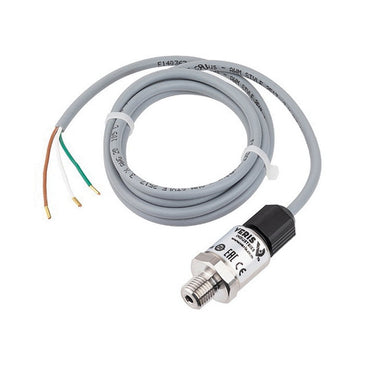

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PG08AV
Documents and manuals
Veris PG08AV Documents
Overview
Details for PG08AV
Pressure | Gauge | 250psig | 0-10VDC | 316SS
Description
The durable PG/PV Series pressure transducers are ideal for a wide variety of HVAC/R and industrial applications, such as refrigeration measurement, pneumatic pressure measurement, gas pressure measurement, pump inlet, and outlet fluid pressure. They are even compatible with extreme applications, such as aerospace and motor sports equipment.
Features
- Rugged stainless steel construction (PG and PV)
- Stainless steel wetted connector (PGE and PVE)
- No silicon oil, no internal O-rings, no welds...fewer parts to fail
- Sturdy construction...suitable for high shock and vibration applications
- A wide operating temperature range of -40° to 85°C (-40° to 185°F) for operation versatility
Applications
- Pump inlet/outlet and compressors
- Hydraulic/pneumatic systems
- Energy & water management
- Refrigeration equipment, fluids
- Gas pressure measurement
Specifications
Item Number | PG08AV |
Brand | Veris |
Application Zone | Plant Room |
Application | Pump and Compressor Monitoring | Gas Pressure | Energy and Water Management | Refrigerant Equipment Monitoring |
Brand | Veris |
Burst Pressure | 1;250 psig (85 bar) |
Calibration Certificate | No |
Dimension Depth | 1.0" (25 mm) |
Dimension Height | 3.5" (88 mm) |
Dimension Width | 1.0" (25 mm) |
Direction | Unidirectional |
Display Type | None |
Electrical Wiring | 3-wires |
Fitting Material | Stainless Steel |
Fitting Size | 1/4" NPT |
Fitting Type | Male |
IP Protection | IP66 (NEMA 4) |
Measurement Type | Gauge Pressure |
Medium | Water |
Model | PG08AV |
Mounting | Pipe |
Operating Humidity | 0 - 95% RH; non-condensing |
Operating Temperature | -22 - 248 °F (-30 - 120 °C) |
Output Specifications | 0 - 10 V |
Outputs | Analog output |
Pressure Measurement Accuracy | ±0.25% BFSL |
Pressure Measurement Range | 0 - 250 psi (0 - 17 bar) |
Pressure Range | 0-250 psig |
Pressure Sensor Type | Guage |
Product Certification | CE |
Product Type | Sensor |
Range | PG |
Sensor | Pressure |
Supply Voltage DC Range | 10 - 28 VDC |
Warranty | 5 years |
