PG07AM | Pressure | Gauge | 100psig | 4-20mA | 316SS | Veris

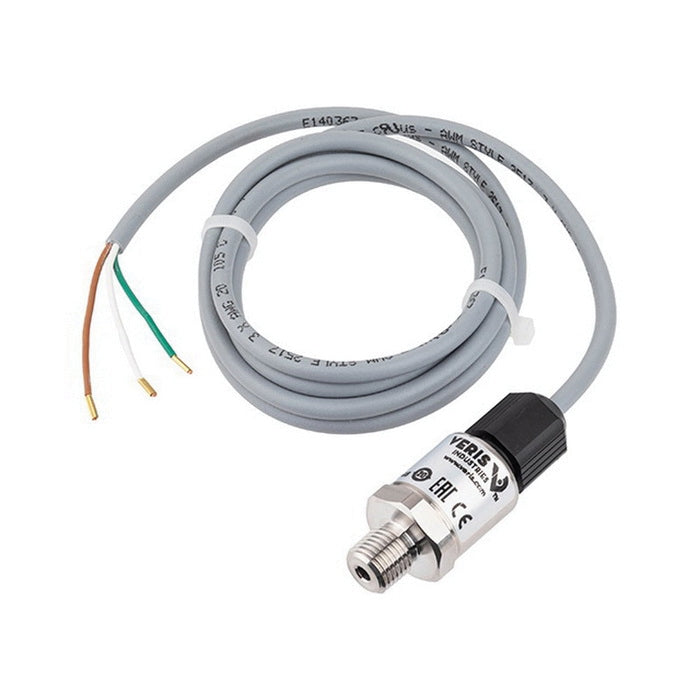

316L Stainless Steel Wetted 4 to 20 mA Gauge Pressure Sensor, 0 to 100 psig

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG07AM

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris PG07AM Documents

CE Declaration Datasheet Installation Guide More Info

Overview

Details for PG07AM

Pressure | Gauge | 100psig | 4-20mA | 316SS

Description

The durable PG/PV Series pressure transducers are ideal for a wide variety of HVAC/R and industrial applications, such as refrigeration measurement, pneumatic pressure measurement, gas pressure measurement, pump inlet, and outlet fluid pressure. They are even compatible with extreme applications, such as aerospace and motor sports equipment.

APPLICATIONS

Pump inlet/outlet and compressors
Hydraulic/pneumatic systems
Energy & water management
Refrigeration equipment, fluids
Gas pressure measurement

Specifications

Item Number	PG07AM
Brand	Veris
Application Zone	Plant Room
Application	Pump and Compressor Monitoring \| Gas Pressure \| Energy and Water Management \| Refrigerant Equipment Monitoring
Brand	Veris
Burst Pressure	500 psig (34 bar)
Calibration Certificate	No
Dimension Depth	1.0" (25 mm)
Dimension Height	3.5" (88 mm)
Dimension Width	1.0" (25 mm)
Direction	Unidirectional
Display Type	None
Electrical Wiring	3-wires \| 2-wires (loop-powered)
Fitting Material	Stainless Steel
Fitting Size	1/4" NPT
Fitting Type	Male
IP Protection	IP66 (NEMA 4)
Measurement Type	Gauge Pressure
Medium	Water
Model	PG07AM
Mounting	Pipe
Operating Humidity	0 - 95% RH; non-condensing
Operating Temperature	-22 - 248 °F (-30 - 120 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Pressure Measurement Accuracy	±0.25% BFSL
Pressure Measurement Range	0 - 100 psi (0 - 7 bar)
Pressure Range	0-100 psig
Pressure Sensor Type	Guage
Product Certification	CE
Product Type	Sensor
Range	PG
Sensor	Pressure
Supply Voltage DC Range	10 - 28 VDC
Warranty	5 years
