PG06AM | Pressure | Gauge | 75psig | 4-20mA | 316SS | Veris

316L Stainless Steel Wetted 4 to 20 mA Gauge Pressure Sensor, 0 to 75 psig

Brand: VerisSKU: PG06AM

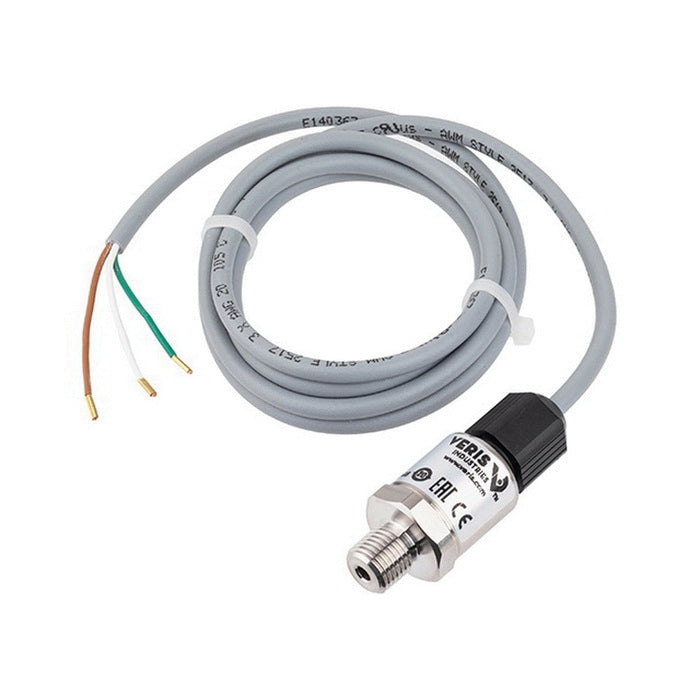

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG06AM

Jump to: Overview & Specifications Reviews

Overview Details for PG06AM

The PG series pressure transducers are compatible with a variety of HVAC and industrial applications, such as refrigeration measurement, pneumatic pressure measurement, gas pressure measurement, pump inlet and outlet fluid pressure. They are also compatible with extreme applications, such as aerospace and motor sports equipment. A wide selection of pressure ranges offers application flexibility. The PG series offers a stainless steel housing and all models are warranted for a period of 5 years.

A wide operating temperature range of -40 to 185 deg F for operation versatility
Fewer parts to fail - No silicon oil, no internal O-rings, no welds
Sturdy construction - suitable for high shock and vibration applications
Rugged - stainless steel wetted construction
Standard connection - cable gland 59 in L
Media compatibility - fluids and gases compatible with 316L stainless steel
Over pressure - 2.5x FS with no change in calibration
Accuracy includes nonlinearity and hysteresis

Specifications

Item Number	PG06AM
Brand	Veris
Application Zone	Plant Room
Application	Pump and Compressor Monitoring \| Gas Pressure \| Energy and Water Management \| Refrigerant Equipment Monitoring
Brand	Veris
Burst Pressure	375 psig (25 bar)
Calibration Certificate	No
Dimension Depth	1.0" (25 mm)
Dimension Height	3.5" (88 mm)
Dimension Width	1.0" (25 mm)
Direction	Unidirectional
Display Type	None
Electrical Wiring	3-wires \| 2-wires (loop-powered)
Fitting Material	Stainless Steel
Fitting Size	1/4" NPT
Fitting Type	Male
IP Protection	IP66 (NEMA 4)
Measurement Type	Gauge Pressure
Medium	Water
Model	PG06AM
Mounting	Pipe
Operating Humidity	0 - 95% RH; non-condensing
Operating Temperature	-22 - 248 °F (-30 - 120 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Pressure Measurement Accuracy	±0.25% BFSL
Pressure Measurement Range	0 - 75 psi (0 - 5 bar)
Pressure Range	0-75 psig
Pressure Sensor Type	Guage
Product Certification	CE
Product Type	Sensor
Range	PG
Sensor	Pressure
Supply Voltage DC Range	10 - 28 VDC
Warranty	5 years
