PG06AJ | Pressure | Gauge | 75psig | 0-5VDC | 316SS | Veris

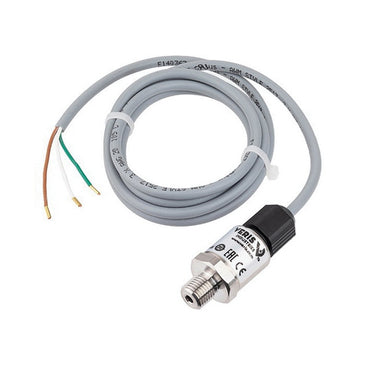

316L Stainless Steel Wetted 0 to 5 VDC Gauge Pressure Sensor, 0 to 75 psig

Veris | PG06AJ
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PG06AJ

Documents and manuals

Overview

Details for PG06AJ

Pressure | Gauge | 75psig | 0-5VDC | 316SS

The PG series pressure transducers are compatible with a variety of HVAC and industrial applications, such as refrigeration measurement, pneumatic pressure measurement, gas pressure measurement, pump inlet and outlet fluid pressure. They are also compatible with extreme applications, such as aerospace and motor sports equipment. A wide selection of pressure ranges offers application flexibility. The PG series offers a stainless steel housing and all models are warranted for a period of 5 years.

  • A wide operating temperature range of -40 to 185 deg F for operation versatility
  • Fewer parts to fail - No silicon oil, no internal O-rings, no welds
  • Sturdy construction - suitable for high shock and vibration applications
  • Rugged - stainless steel wetted construction
  • Standard connection - cable gland 59 in L
  • Media compatibility - fluids and gases compatible with 316L stainless steel
  • Over pressure - 2.5x FS with no change in calibration
  • Accuracy includes nonlinearity and hysteresis

Specifications

Item Number PG06AJ
Brand Veris
Application Zone Plant Room
Application Pump and Compressor Monitoring | Gas Pressure | Energy and Water Management | Refrigerant Equipment Monitoring
Brand Veris
Burst Pressure 375 psig (25 bar)
Calibration Certificate No
Dimension Depth 1.0" (25 mm)
Dimension Height 3.5" (88 mm)
Dimension Width 1.0" (25 mm)
Direction Unidirectional
Display Type None
Electrical Wiring 3-wires
Fitting Material Stainless Steel
Fitting Size 1/4" NPT
Fitting Type Male
IP Protection IP66 (NEMA 4)
Measurement Type Gauge Pressure
Medium Water
Model PG06AJ
Mounting Pipe
Operating Humidity 0 - 95% RH; non-condensing
Operating Temperature -22 - 248 °F (-30 - 120 °C)
Output Specifications 0 - 5 V
Outputs Analog output
Pressure Measurement Accuracy ±0.25% BFSL
Pressure Measurement Range 0 - 75 psi (0 - 5 bar)
Pressure Range 0-75 psig
Pressure Sensor Type Guage
Product Certification CE
Product Type Sensor
Range PG
Sensor Pressure
Supply Voltage DC Range 10 - 28 VDC
Warranty 5 years
