PG05AV | Pressure | Gauge | 50psig | 0-10VDC | 316SS | Veris

316L Stainless Steel Wetted 0 to 10 VDC Gauge Pressure Sensor, 0 to 50 psig

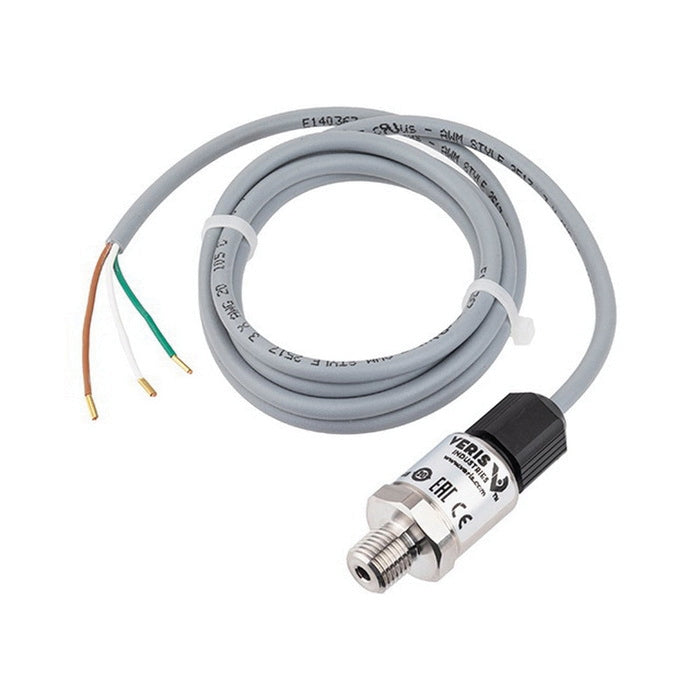

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG05AV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris PG05AV Documents

CE Declaration Datasheet Installation Guide More Info

Overview

Details for PG05AV

Pressure | Gauge | 50psig | 0-10VDC | 316SS

The durable PG/PV Series pressure transducers are ideal for a wide variety of HVAC/R and industrial applications, such as refrigeration measurement, pneumatic pressure measurement, gas pressure measurement, pump inlet, and outlet fluid pressure. They are even compatible with extreme applications, such as aerospace and motor sports equipment.

Specifications

Item Number	PG05AV
Brand	Veris
Application Zone	Plant Room
Application	Pump and Compressor Monitoring \| Gas Pressure \| Energy and Water Management \| Refrigerant Equipment Monitoring
Brand	Veris
Burst Pressure	250 psig (17 bar)
Calibration Certificate	No
Dimension Depth	1.0" (25 mm)
Dimension Height	3.5" (88 mm)
Dimension Width	1.0" (25 mm)
Direction	Unidirectional
Display Type	None
Electrical Wiring	3-wires
Fitting Material	Stainless Steel
Fitting Size	1/4" NPT
Fitting Type	Male
IP Protection	IP66 (NEMA 4)
Measurement Type	Gauge Pressure
Medium	Water
Model	PG05AV
Mounting	Pipe
Operating Humidity	0 - 95% RH; non-condensing
Operating Temperature	-22 - 248 °F (-30 - 120 °C)
Output Specifications	0 - 10 V
Outputs	Analog output
Pressure Measurement Accuracy	±0.25% BFSL
Pressure Measurement Range	0 - 50 psi (0 - 3.5 bar)
Pressure Range	0-50 psig
Pressure Sensor Type	Guage
Product Certification	CE
Product Type	Sensor
Range	PG
Sensor	Pressure
Supply Voltage DC Range	10 - 28 VDC
Warranty	5 years
