PAS03 | Pressure,Dry,Switch,Diff,.4"-4"WC | Veris

Dry Media Differential Air Pressure Switch, 0.4 to 4 in-WC

Brand: VerisSKU: PAS03

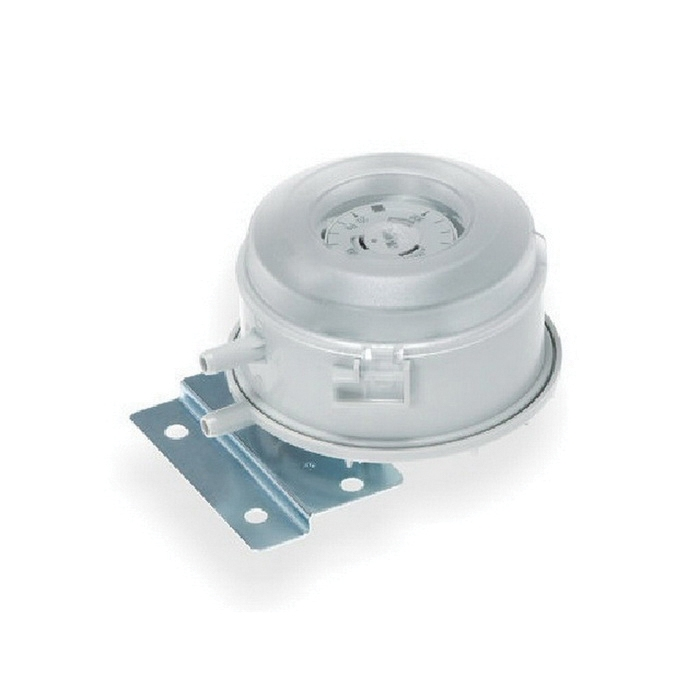

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PAS03

Jump to: Overview & Specifications Reviews

Overview Details for PAS03

This series of four PASxx differential air flow switches are intended for use in air handling systems for the monitoring of air ducts, filters and fans. The enclosure is plastic with a rating of IP54. A set-point adjustment is provided under the clip-on clear plastic cover. Supplied complete with mounting adaptor ring, two straight duct probes and a 6 ft length of clear tubing.

Case geometry allows easy cable lead-in
High adjustment accuracy through individual laser etched scale
Cable strain relief integrated in PG11 (DIN 40430)
User-friendly snap cover
Stable switching points - long-term stability of switching points through trapezoidal bead diaphragm
Case: PC 10% GF, cover: PC, diaphragm: silicone LSR tempered 200 deg C, free of gas emissions materials in contact with the medium
Mechanical greater than 106 switching cycles service life
Screw terminals cable gland type PG11 (DIN 40430) complete with cable strain relief electrical connection
Air and neutral gases medium

Specifications

Item Number	PAS03
Brand	Veris
Application Zone	Plant Room
Application	Fan Monitoring \| Filter Monitoring
Brand	Veris
Dimension Depth	3.5" (88 mm)
Dimension Height	2.1" (52 mm)
Dimension Width	3.6" (91 mm)
Display Type	None
Electrical Wiring	3-wires
Enclosure Material	PC 10% GF
Fitting Material	PC 10% GF
Fitting Size	0.24" (6.2 mm)
Fitting Type	Male
IP Protection	IP54 (NEMA 3)
Measurement Type	Differential Pressure
Medium	Air \| Gas
Model	PAS03
Mounting	Duct \| Panel
Operating Temperature	-22 - 185 °F (-30 - 85 °C)
Output Specifications	N.C. 5 A @ 250 VAC
Outputs	Switch output
Pressure Measurement Range	0.4 - 4.0"WC (100 - 1 000 Pa)
Product Certification	CE
Product Type	Sensor
Range	PAS
Warranty	5 years
