MSCU2000 | Sensor | Motion | Ceiling | Ultra | 2000ft | Veris

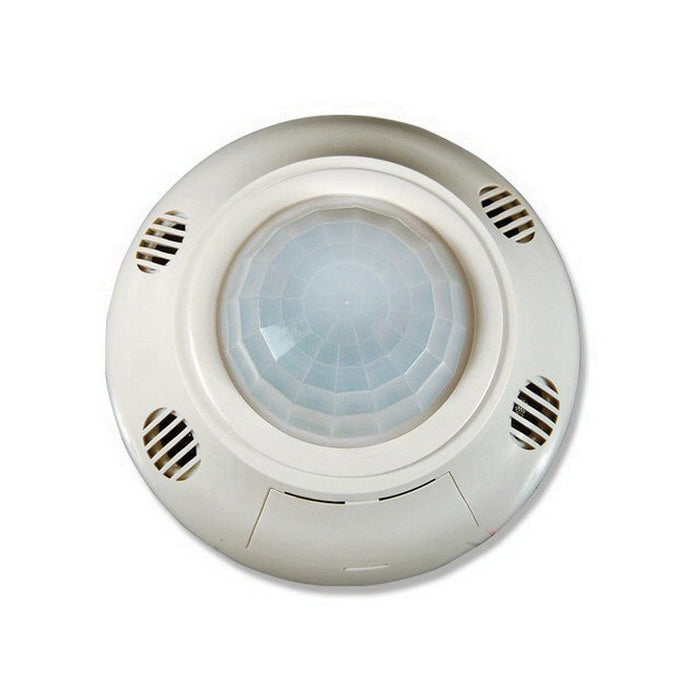

Ultrasonic Occupancy Sensor, 2000 sq-ft

Veris | MSCU2000
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSCU2000

Documents and manuals

Veris MSCU2000 Documents

Overview

Details for MSCU2000

Sensor | Motion | Ceiling | Ultra | 2000ft

MSC series occupancy sensors employ passive infrared (PIR) and/or ultrasonic technologies to accurately detect occupancy and automatically switch room lighting. The low profile sensor is ceiling-mounted to maximize motion sensitivity in large areas with obstructions. With a 360 deg field of view and up to 2000 sq-ft of coverage area, the ceiling-mounted occupancy sensor is ideal for conference rooms, classrooms, multi-stall bathrooms, and large office areas. The MSC series also incorporates an integral photosensor to prevent lights from switching on when sufficient ambient light is present, as commonly found in windowed areas. Installation and configuration are simple. The sensor readily mounts to drop ceilings, and it features front adjustments for setting sensitivity and time delay. The sensor also features an auxiliary relay for use with building automation and HVAC systems.

  • Up to 2000 sq-ft coverage area and 360 deg field of view for application versatility
  • Daylight level sensing (from 0.5 to 250 ft candles) avoids unnecessary lighting
  • Adjustable time delay (preset time delays from 15 s (test) to 30 min) provides ultimate flexibility
  • Adjustable coverage sensitivity (from 60 to 100%)
  • Auxiliary relay - easily communicates with building control system
  • Adjustment compartment cover tamper resistant

Specifications

Item Number MSCU2000
Brand Veris
Application Zone Living Space
Application Building Automation Systems
Color White
Measurement Type Motion
Model MSCU2000
Motion Detection Angle 360 °
Motion Detection Range 42' (12.8 m)
Motion Detection Sensor Type Ultrasonic
Mounting Ceiling
Operating Humidity 0 - 90% RH; non-condensing
Operating Temperature 32 - 122 °F (0 - 50 °C)
Output Specifications 1 A @ 24VDC
Outputs Switch output
Product Certification UL
Range MSCU2000
Sensor Configuration Ceiling
Sensor Occupancy
Warranty 1 year
