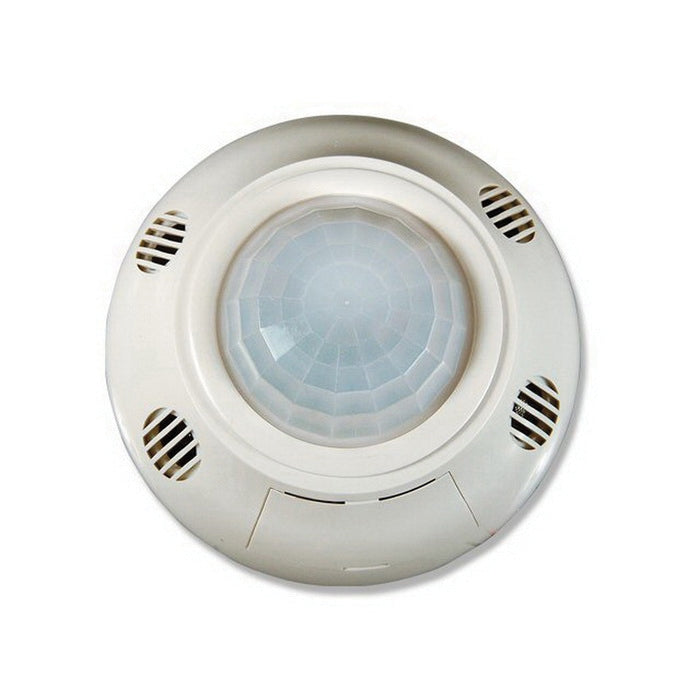

MSCP1000 | Sensor | Motion | Ceiling | PIR | 1000ft | Veris

MSC series occupancy sensors employ passive infrared (PIR) and/or ultrasonic technologies to accurately detect occupancy and automatically switch room lighting. The low profile sensor is ceiling-mounted to maximize motion sensitivity in large areas with obstructions. With a 360 deg field of view and up to 2000 sq-ft of coverage area, the ceiling-mounted occupancy sensor is ideal for conference rooms, classrooms, multi-stall bathrooms, and large office areas. The MSC series also incorporates an integral photosensor to prevent lights from switching on when sufficient ambient light is present, as commonly found in windowed areas. Installation and configuration are simple. The sensor readily mounts to drop ceilings, and it features front adjustments for setting sensitivity and time delay. The sensor also features an auxiliary relay for use with building automation and HVAC systems.

• Up to 1000 sq-ft coverage area and 360 deg field of view for application versatility
• Daylight level sensing (from 0.5 to 250 ft candles) avoids unnecessary lighting
• Adjustable time delay (preset time delays from 15 s (test) to 30 min) provides ultimate flexibility
• Adjustable coverage sensitivity (from 60 to 100%)
• Auxiliary relay - easily communicates with building control system
• Adjustment compartment cover tamper resistant
