Documents: MSBPA1W
MSBPA1W | WALL SWITCH REPLACEMENT AUTO ON WHITE | Veris

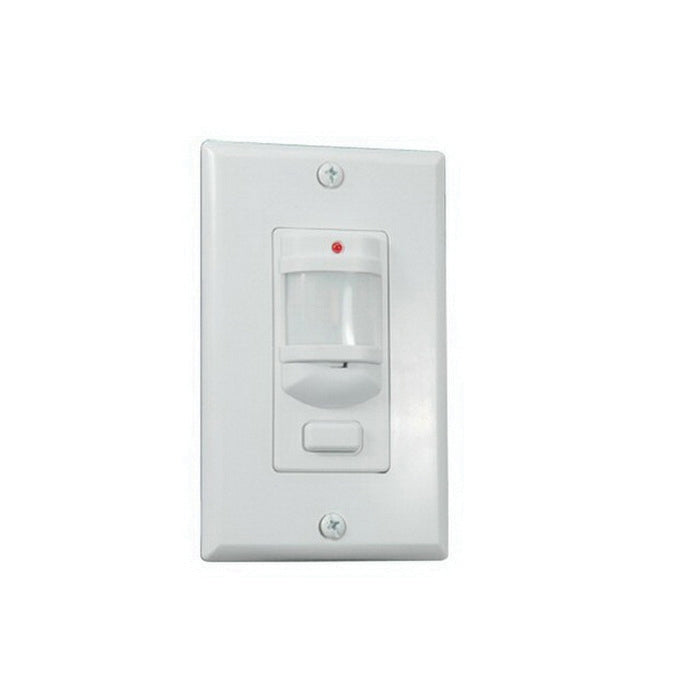

White Automatic Wall Switch Occupancy Sensor
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MSBPA1W
Overview Details for MSBPA1W
The MSB series employs the latest passive infrared (PIR) technology to automatically control lighting for areas up to 1000 sq-ft, achieving energy savings and convenience. Each sensor employs a special 180 deg multi-segmented lens and PIR motion detector circuit to sense when a person enters the area and automatically activate the lights. The sensor will automatically switch the lights off after a preset delay if motion is no longer detected. The MSB Series fits in place of existing wall switches, connecting to existing wiring, similar to a typical wall switch. The MSB series is the simplest way to achieve energy saving lighting control with minimal installation time. To assure long relay life, the MSB series employs a low energy switch circuit to assure maximum contact life. These sensors are compatible with electronic and magnetic ballast loads.
- Adjustable time delay
- Bypass button for always on operability simplifies commissioning 180 deg motion detection
- 180 deg motion detection
- Line powered - no separate supply needed
- Ballast compatibility - compatible with magnetic and electronic ballasts provides ultimate flexibility
- Loading - no minimum loading requirement
- Automatic turn-on
- 1 number of circuit
The MSB series employs the latest passive infrared (PIR) technology to automatically control lighting for areas up to 1000 sq-ft, achieving energy savings and convenience. Each sensor employs a special 180 deg multi-segmented lens and PIR motion detector circuit to sense when a person enters the area and automatically activate the lights. The sensor will automatically switch the lights off after a preset delay if motion is no longer detected. The MSB Series fits in place of existing wall switches, connecting to existing wiring, similar to a typical wall switch. The MSB series is the simplest way to achieve energy saving lighting control with minimal installation time. To assure long relay life, the MSB series employs a low energy switch circuit to assure maximum contact life. These sensors are compatible with electronic and magnetic ballast loads.
- Adjustable time delay
- Bypass button for always on operability simplifies commissioning 180 deg motion detection
- 180 deg motion detection
- Line powered - no separate supply needed
- Ballast compatibility - compatible with magnetic and electronic ballasts provides ultimate flexibility
- Loading - no minimum loading requirement
- Automatic turn-on
- 1 number of circuit
Specifications
| Item Number | MSBPA1W |
| Brand | Veris |
| Application Zone | Living Space |
| Application | Building Automation Systems |
| Color | White |
| Installation Height | 4' (1.2 m) |
| Measurement Type | Motion |
| Model | MSBPA1W |
| Motion Detection Angle | 180 ° |
| Motion Detection Range | 35' (1.07 m) |
| Motion Detection Sensor Type | PIR |
| Mounting | Wall |
| Operating Humidity | 0 - 90% RH; non-condensing |
| Operating Temperature | 32 - 122 °F (0 - 50 °C) |
| Outputs | Relay |
| Product Certification | UL |
| Range | MSBPA1W |
| Relay Construction | Mechanical |
| Relay Contact Ratings | 0.25 H.P. @ 120 VAC | Tungsten: 8.3 A @ 120 VAC | Balast: 6.5 A @ 277 VAC |
| Relay Poles/Throw | SPST |
| Sensor Configuration | Room Only |
| Sensor | Occupancy |
| Warranty | 1 year |
