HW2XP2A | RH,Wall,2%,Temp,Xmtr,Prot | Veris
Sensor, Humidity, Wall, 2% Accuracy, Accuracy, Temp Transmitter, BACnet/Modbus

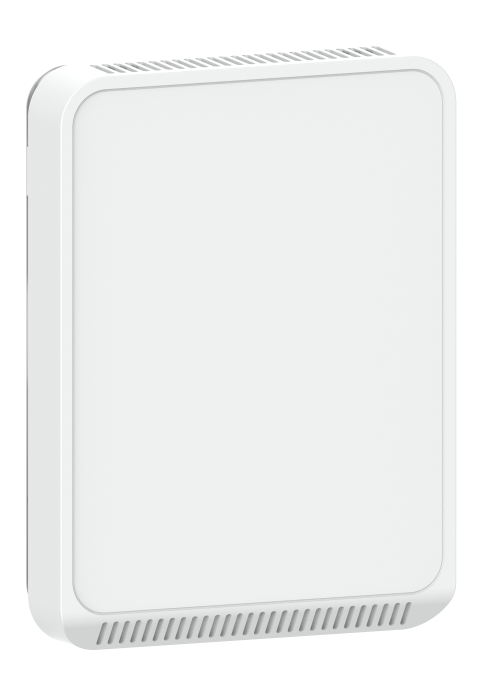

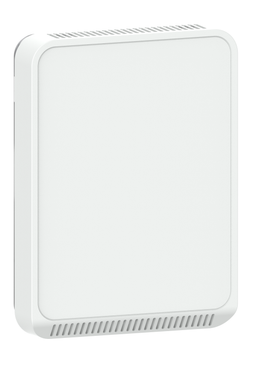

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2XP2A
Documents and manuals
Veris HW2XP2A Documents
Overview
Details for HW2XP2A
RH,Wall,2%,Temp,Xmtr,Prot
The Veris HW2 Protocol Series of humidity sensors for living space is a flexible multi-sensor platform for use with BAS controllers designed to accept BACnet and Modbus outputs. HW2 Protocol Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Protocol Series sensors.Specifications
Item Number | HW2XP2A |
Brand | Veris |
Color | Matte White |
Communication Specifications | BACnet MSTP or Modbus via RS-485; selectable |
Communication | Protocol |
Electrical Wiring Size | Screw terminals; 18-24 AWG |
Enclosure Material | High impact ABS plastic |
Humidity Measurement Accuracy | ±2% from 10 to 80% RH @ 25°C (77 °F) |
Humidity Measurement Range | 0 to 100% RH |
Humidity Measurement Resolution | 0.1% RH |
Humidity Sensor Type | Thin-film capacitive; replaceable |
Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
IP Protection | IP20 |
Measurement Type | RH / Temperature |
Operating Humidity | 0 to 95% RH non-condensing |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Override | No |
Setpoint | No |
Standards EMC | EN61000 Series - industrial immunity |
Temperature Measurement Accuracy | ±0.2 °C (±0.4 °F) typical |
Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
Temperature Sensor Type | Solid state; integrated circuit |
Warranty | 5 Years |
