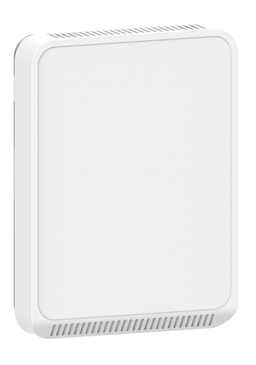

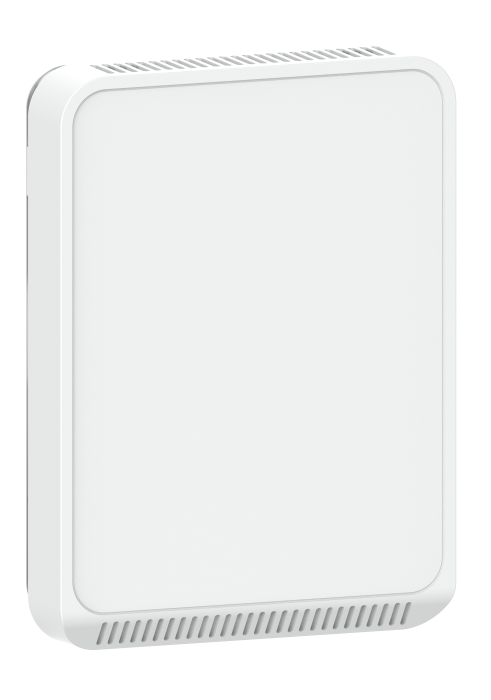

HW2XA2C | RH,Wall,2%,Temp,1K Pt | Veris
Sensor, Humidity, Wall, 2% Accuracy, Accuracy, Temp, 1k Platinum RTD
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2XA2C
Documents and manuals
Veris HW2XA2C Documents
Overview
Details for HW2XA2C
RH,Wall,2%,Temp,1K Pt
The Veris HW2 Series of humidity sensors for living space is a flexible multi-sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. HW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Series sensorsSpecifications
Item Number | HW2XA2C |
Brand | Veris |
Color | Matte White |
Electrical Wiring Size | Screw terminals; 18-24 AWG |
Enclosure Material | High impact ABS plastic |
Humidity Measurement Accuracy | ±2% from 10 to 80% RH @ 25°C (77 °F) |
Humidity Measurement Range | 0 to 100% RH |
Humidity Measurement Resolution | 0.1% RH |
Humidity Sensor Type | Thin-film capacitive; replaceable |
Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
IP Protection | IP20 |
Measurement Type | RH / Temperature |
Operating Humidity | 0 to 95% RH non-condensing |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Output Specifications | Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V |
Outputs | Analog |
Override | No |
Setpoint | No |
Standards EMC | EN61000 Series - industrial immunity |
Temperature Measurement Accuracy | ±0.3 °C |
Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
Temperature Sensor Type | RTD; 1K Ohm Platinum |
Warranty | 5 Years |
