HW2XA2A | RH,Wall,2%,Temp,Xmtr | Veris

Sensor, Humidity, Wall, 2% Accuracy, Accuracy, Temp Transmitter

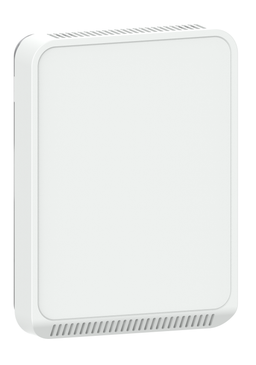

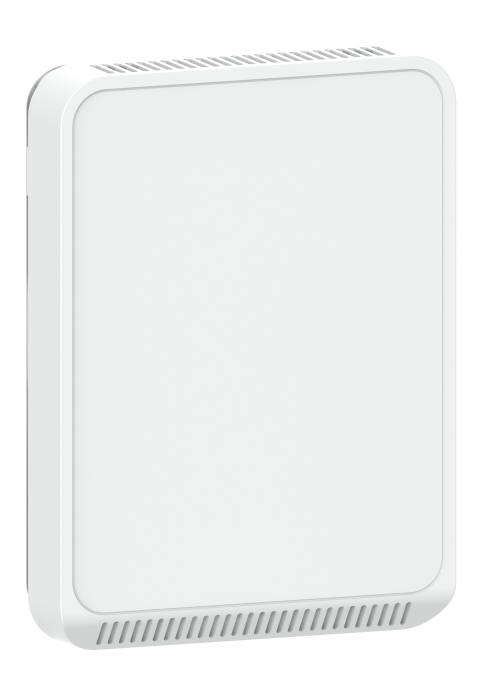

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HW2XA2A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris HW2XA2A Documents

Datasheet Installation guide More Info

Overview

Details for HW2XA2A

RH,Wall,2%,Temp,Xmtr

The Veris HW2 Series of humidity sensors for living space is a flexible multi-sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. HW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Series sensors

Specifications

Item Number	HW2XA2A
Brand	Veris
Color	Matte White
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Humidity Measurement Accuracy	±2% from 10 to 80% RH @ 25°C (77 °F)
Humidity Measurement Range	0 to 100% RH
Humidity Measurement Resolution	0.1% RH
Humidity Sensor Type	Thin-film capacitive; replaceable
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	RH / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	No
Setpoint	No
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Accuracy	±0.2 °C (±0.4 °F) typical
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Solid state; integrated circuit
Warranty	5 Years
