HW2TP2A | RH,Wall,Touch,2%,Temp,Xmtr,Prot | Veris

Sensor, Humidity, Wall, Touchscreen, 2%,Temp Transmitter, BACnet/Modbus

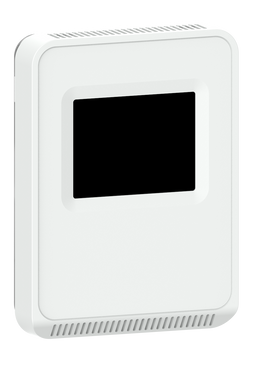

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HW2TP2A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris HW2TP2A Documents

Datasheet Installation Guide More Info

Overview

Details for HW2TP2A

RH,Wall,Touch,2%,Temp,Xmtr,Prot

The Veris HW2 Protocol Series of humidity sensors for living space is a flexible multi-sensor platform for use with BAS controllers designed to accept BACnet and Modbus outputs. HW2 Protocol Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. Humidity and temperature sensors are included with all HW2 Protocol Series sensors.

Specifications

Item Number	HW2TP2A
Brand	Veris
Color	Matte White
Communication Specifications	BACnet MSTP or Modbus via RS-485; selectable
Communication	Protocol
Display Resolution	240 x 300 px
Display Size	2.4 in (61 mm)
Display Type	LCD; Color; Backlit; Capacititve Touchscreen
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Humidity Measurement Accuracy	±2% from 10 to 80% RH @ 25°C (77 °F)
Humidity Measurement Range	0 to 100% RH
Humidity Measurement Resolution	0.1% RH
Humidity Sensor Type	Thin-film capacitive; replaceable
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	RH / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Override	Yes
Setpoint Range	Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Humidity: 0 to 100% RH. Fan Speed: Off; Low; Med.; High.
Setpoint Specifications	Temperature; humidity or fan speed (one setpoint type is selectable via dip switch)
Setpoint	Yes
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Accuracy	±0.2 °C (±0.4 °F) typical
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Solid state; integrated circuit
Warranty	5 Years
