HW2LA2M | Sensor, RH, Wall, LCD,2%,Temp, 20K Thermistor | Veris

Sensor, RH, Wall, LCD,2%,Temp, 20K Thermistor

Brand: VerisSKU: HW2LA2M

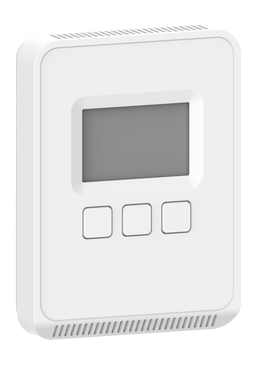

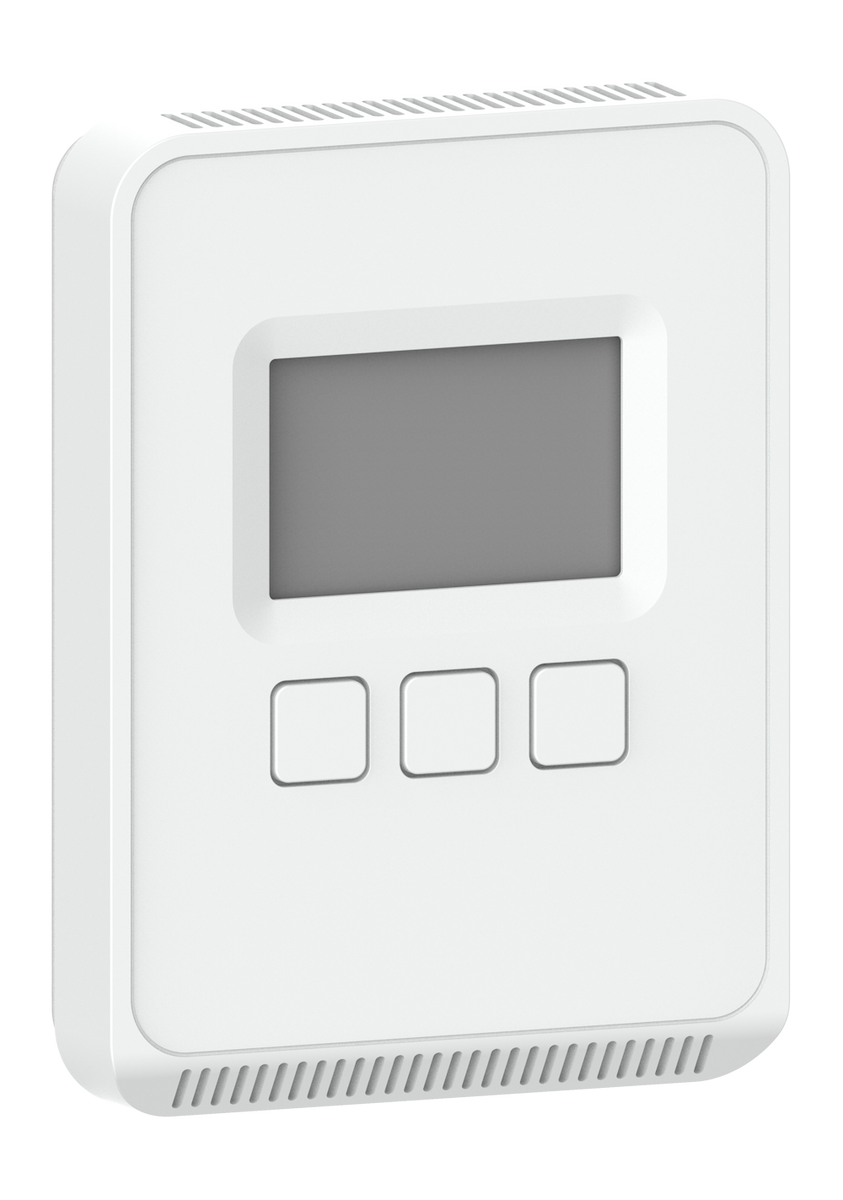

Veris | HW2LA2M
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HW2LA2M
Jump to: Overview & Specifications Reviews

Overview Details for HW2LA2M

Specifications

Item Number HW2LA2M
Brand Veris
Color Matte White
Display Size 2.05 in (52 mm)
Display Type Segmented LCD; with 3 Buttons
Electrical Wiring Size Screw terminals; 18-24 AWG
Enclosure Material High impact ABS plastic
Humidity Measurement Accuracy ±2% from 10 to 80% RH @ 25°C (77 °F)
Humidity Measurement Range 0 to 100% RH
Humidity Measurement Resolution 0.1% RH
Humidity Sensor Type Thin-film capacitive; replaceable
Input Specifications Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection IP20
Measurement Type RH / Temperature
Operating Humidity 0 to 95% RH non-condensing
Operating Temperature 0 to 50 °C (32 to 122 °F)
Output Specifications Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs Analog
Override Yes
Setpoint Range Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Humidity: 0 to 100% RH. Fan Speed: Off; Low; Med.; High.
Setpoint Specifications 0-10Vdc. Temperature; humidity or fan speed (one setpoint type is selectable via dip switch)
Setpoint Yes
Standards EMC EN61000 Series - industrial immunity
Temperature Measurement Range 0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution 0.1 °C (0.1 °F)
Temperature Sensor Type Thermistor; 20K NTC
