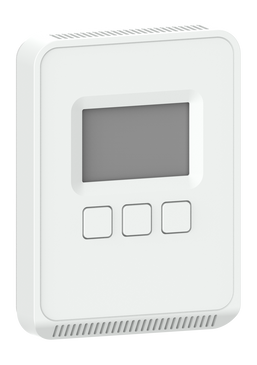

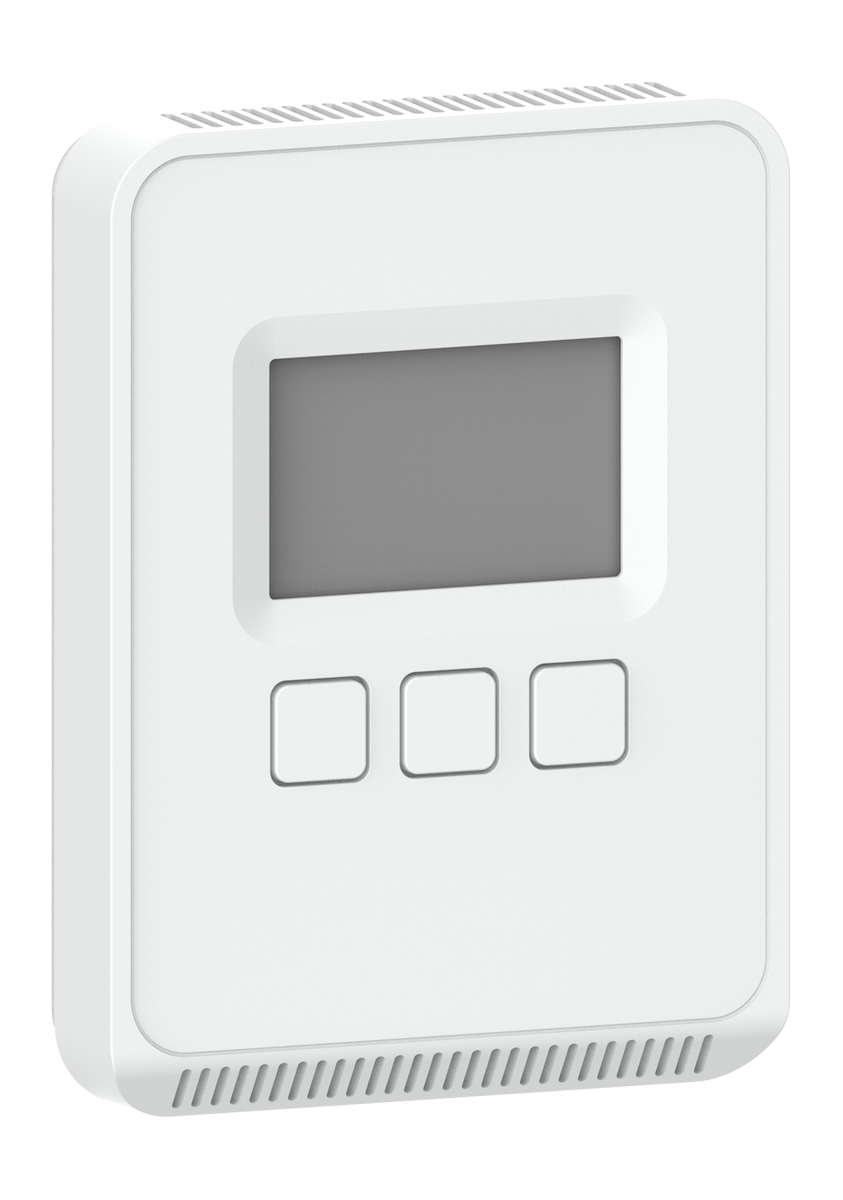

HW2LA2C | Sensor, RH, Wall, LCD,2%,Temp, 1k Platinum RTD | Veris

Sensor, RH, Wall, LCD,2%,Temp, 1k Platinum RTD

Brand: VerisSKU: HW2LA2C

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for HW2LA2C

Sensor, RH, Wall, LCD,2%,Temp, 1k Platinum RTD

Item Number	HW2LA2C
Brand	Veris
Color	Matte White
Display Size	2.05 in (52 mm)
Display Type	Segmented LCD; with 3 Buttons
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Humidity Measurement Accuracy	±2% from 10 to 80% RH @ 25°C (77 °F)
Humidity Measurement Range	0 to 100% RH
Humidity Measurement Resolution	0.1% RH
Humidity Sensor Type	Thin-film capacitive; replaceable
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	RH / Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	Yes
Setpoint Range	Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Humidity: 0 to 100% RH. Fan Speed: Off; Low; Med.; High.
Setpoint Specifications	0-10Vdc. Temperature; humidity or fan speed (one setpoint type is selectable via dip switch)
Setpoint	Yes
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Accuracy	±0.3 °C
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	RTD; 1K Ohm Platinum
