HO2XVSTD | RH Outdoor | 2% | 5/10VDC | Temp | 10k T2 | Veris

Deluxe +/-2% Accuracy 0 to 5/0 to 10 VDC 10 kOhm T2 Thermistor Outdoor Humidity and Temperature Sensor, US or EU, CE Certified

Veris | HO2XVSTD

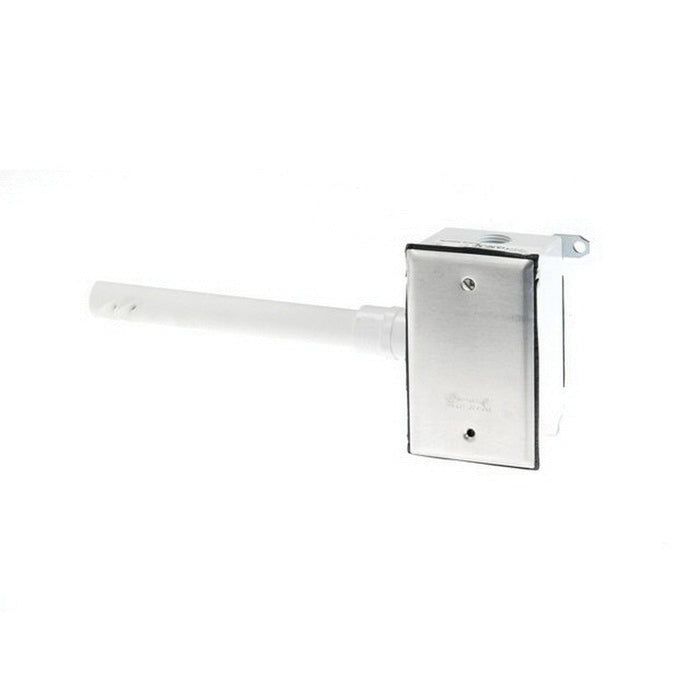

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HO2XVSTD

Documents and manuals

Overview

Details for HO2XVSTD

RH Outdoor | 2% | 5/10VDC | Temp | 10k T2

HO series deluxe humidity transmitters provide an ideal solution for measuring relative humidity in a wide range of conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. The outdoor HO housing is completely weather proof - the most rugged sensor available. All deluxe HO models come with a standard 5 years warranty.

  • Sensor element - thin-film capacitive sensor element recovers from 100% saturation
  • Accuracy - fully interchangeable element to 2% accuracy no calibration
  • Field replaceable - replace element in the field maintain accuracy and minimize downtime
  • Easy servicing - duct sensor element can be serviced without disturbing conduit
  • Potted circuitry - prevents costly condensate shorts
  • Flexibility - polarity insensitive, 3-wire 0 to 5/0 to 10 VDC versions flexible systems compatibility save time in the field, stock fewer devices
  • Outdoor enclosure
  • 3-wire, observe polarity
  • Digitally profiled thin-film capacitive (32-bit mathematics) US Patent 5,844,138 HS element, this sensing element has a 1 year warranty

Specifications

Item Number HO2XVSTD
Brand Veris
Application Zone Outdoor
Application Outdoor Reference
Brand Veris
Color Gray and White
Dimension Depth 2" (51 mm)
Dimension Height 4.6" (117 mm)
Dimension Probe Diameter 0.7" (18 mm)
Dimension Probe Length 9.9" (251 mm)
Dimension Width 2.9" (74 mm)
Electrical Wiring Size 22 AWG (0.32 mm²)
Enclosure Material Cast Aluminum/Stainless Steel Cover
Feature Level Deluxe
Humidity Calibration Certificate None
Humidity Measurement Accuracy ±2%
Humidity Measurement Drift ±1% @ 68 °F (20 °C) annually for 2 years
Humidity Measurement Range 0 - 100% RH
Humidity Measurement Resolution 0.1% RH
Humidity Sensor Type Thin film capacitive; replaceable
Measurement Type Humidity | Temperature
Mounting Outdoor Wall
Operating Humidity 0-100% RH; non-condensing (will recover from saturation)
Operating Temperature -40 - 122 °F (-40 - 50 °C)
Output Specifications 0 - 5 V | 0 - 10 V
Outputs Analog output | Resistive temperature output
Product Certification CE
Product Type Sensor
Range HO
Sensor Configuration Outdoor Air
Sensor Temp and Humidity 2%
Supply Voltage AC Nominal 24 VAC
Supply Voltage DC Range 12 - 30 VDC
Temperature Calibration Certificate None
Temperature Measurement Accuracy ±1.8 °F (±1.0 °C)
Temperature Measurement Range -58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type 10k Ohm Type 2 Thermistor
Warranty 5 years (1 year on replaceable RH element)
