HEW3VSTG | RH Econ | Wall | 3% | 0-10V | Temp | 10k CPC | Veris
ABS Plastic +/-3% Accuracy 0 to 5/0 to 10 VDC 10 kOhm CPC Thermistor Standard Wall Mount Humidity and Temperature Sensor

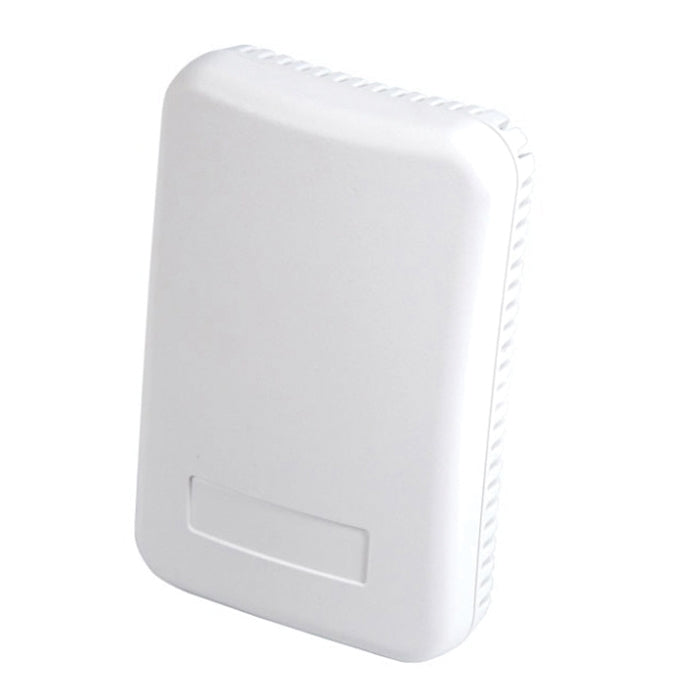

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HEW3VSTG
Documents and manuals
Veris HEW3VSTG Documents
Overview
Details for HEW3VSTG
RH Econ | Wall | 3% | 0-10V | Temp | 10k CPC
HD & HO Series Deluxe humidity transmitters provide an ideal solution for measuring relative humidity in a wide range of conditions. All devices are equipped with a thin-film capacitive sensor that is easily replaceable in the field. These sensors are calibrated to NIST standards, with certificates available (see Ordering Information; choose “N" in NIST block). Temperature sensing options are also available. The duct mounted HD is encased in a die cast metal housing for extra strength. The outdoor HO housing is completely weather proof – the most rugged sensor available. All Deluxe HD and HO models come with a standard five-year warrantySpecifications
Item Number | HEW3VSTG |
Brand | Veris |
Application Zone | Living Space |
Application | Wall |
Brand | Veris |
Color | Cloud White |
Dimension Depth | 1.3" (33 mm) |
Dimension Height | 4.9" (123 mm) |
Dimension Width | 3.2" (82 mm) |
Display Type | None |
Electrical Wiring Size | 24 - 14 AWG (0.22 - 2.5 mm²) |
Enclosure Material | ABS Plastic |
Feature Level | Economy |
Humidity Calibration Certificate | None |
Humidity Measurement Accuracy | ±3% |
Humidity Measurement Drift | =1% annually |
Humidity Measurement Range | 0 - 100% RH |
Humidity Measurement Resolution | 0.1% RH |
Humidity Sensor Type | Thin film capacitive |
Measurement Type | Humidity | Temperature |
Mounting | Wall |
Operating Humidity | 0-100% RH; non-condensing (will recover from saturation) |
Operating Temperature | 50 - 95 °F (10 - 35 °C) |
Output Specifications | 0 - 5 V | 0 - 10 V |
Outputs | Analog output | Resistive temperature output |
Override | No |
Product Certification | CE |
Product Type | Sensor |
Range | HEW |
Response Time | 110 s (to 90% change @ 20 °C) |
Sensor Configuration | Room Only |
Sensor | Temp and Humidity 3% |
Setpoint | No |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage DC Range | 12 - 30 VDC |
Temperature Calibration Certificate | None |
Temperature Measurement Accuracy | ±0.4 °F (±0.22 °C) @ 77 °F (25 °C) |
Temperature Measurement Range | 32 - 158 °F (0 - 70 °C) |
Temperature Sensor Type | 10k Ohm CPC Thermistor |
Warranty | 1 year |
