HEW3MSTD | RH/T | Economy | Wall | 3% | 4-20 | 10k T2 | Veris

ABS Plastic +/-3% Accuracy 4 to 20 mA 10 kOhm T2 Thermistor Standard Wall Mount Humidity and Temperature Sensor

Brand: VerisSKU: HEW3MSTD
Veris | HEW3MSTD

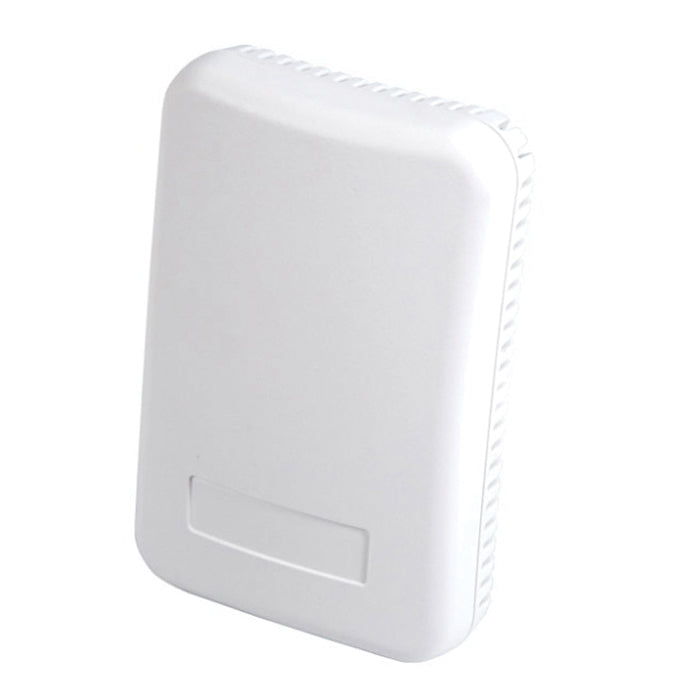

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HEW3MSTD

Overview Details for HEW3MSTD

HEW standard series wall mount humidity transmitters offer high performance in an easy to install housing at an affordable price. The thin-film capacitive sensor element provides high accuracy and performance, great long-term stability, and full recovery from saturation. The wall housing was created using sophisticated thermal analysis techniques for optimum airflow. It is ideal for schools and other applications requiring exceptional durability and a discrete appearance. All standard models come with a standard 1 year warranty.

  • RH and temperature - monitor humidity and temperature with a single device reduces installation costs
  • Housing is low-profile perfect for schools and museums
  • 2-wire, not polarity sensitive
  • Digitally profiled thin-film capacitive, non-removable RH element
  • US and European junction box mounting holes

Specifications

Item Number HEW3MSTD
Brand Veris
Application Zone Living Space
Application Wall
Brand Veris
Color Cloud White
Dimension Depth 1.3" (33 mm)
Dimension Height 4.9" (123 mm)
Dimension Width 3.2" (82 mm)
Display Type None
Electrical Wiring Size 24 - 14 AWG (0.22 - 2.5 mm²)
Enclosure Material ABS Plastic
Feature Level Economy
Humidity Calibration Certificate None
Humidity Measurement Accuracy ±3%
Humidity Measurement Drift =1% annually
Humidity Measurement Range 0 - 100% RH
Humidity Measurement Resolution 0.1% RH
Humidity Sensor Type Thin film capacitive
Measurement Type Humidity | Temperature
Mounting Wall
Operating Humidity 0-100% RH; non-condensing (will recover from saturation)
Operating Temperature 50 - 95 °F (10 - 35 °C)
Output Specifications 4 - 20 mA
Outputs Analog output | Resistive temperature output
Override No
Product Certification CE
Product Type Sensor
Range HEW
Response Time 110 s (to 90% change @ 20 °C)
Sensor Configuration Room Only
Sensor Temp and Humidity 3%
Setpoint No
Supply Voltage DC Range 12 - 24 VDC
Temperature Calibration Certificate None
Temperature Measurement Accuracy ±1.8 °F (±1.0 °C)
Temperature Measurement Range -58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type 10k Ohm Type 2 Thermistor
Warranty 1 year
