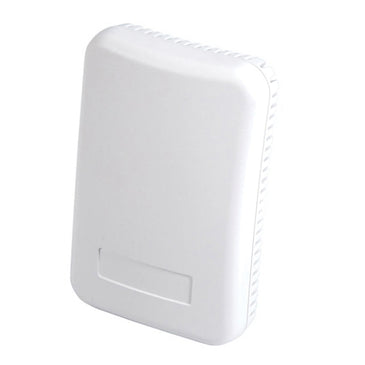

HEW3MSTC | RH/T | Economy | Wall | 3% | 4-20 | 1k Pt | Veris

ABS Plastic +/-3% Accuracy 4 to 20 mA 1 kOhm Platinum RTD Standard Wall Mount Humidity and Temperature Sensor

Brand: VerisSKU: HEW3MSTC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HEW3MSTC

Jump to: Overview & Specifications Reviews

Overview Details for HEW3MSTC

HEW standard series wall mount humidity transmitters offer high performance in an easy to install housing at an affordable price. The thin-film capacitive sensor element provides high accuracy and performance, great long-term stability, and full recovery from saturation. The wall housing was created using sophisticated thermal analysis techniques for optimum airflow. It is ideal for schools and other applications requiring exceptional durability and a discrete appearance. All standard models come with a standard 1 year warranty.

RH and temperature - monitor humidity and temperature with a single device reduces installation costs
Housing is low-profile perfect for schools and museums
2-wire, not polarity sensitive
Digitally profiled thin-film capacitive, non-removable RH element
US and European junction box mounting holes

Specifications

Item Number	HEW3MSTC
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Color	Cloud White
Dimension Depth	1.3" (33 mm)
Dimension Height	4.9" (123 mm)
Dimension Width	3.2" (82 mm)
Display Type	None
Electrical Wiring Size	24 - 14 AWG (0.22 - 2.5 mm²)
Enclosure Material	ABS Plastic
Feature Level	Economy
Humidity Calibration Certificate	None
Humidity Measurement Accuracy	±3%
Humidity Measurement Drift	=1% annually
Humidity Measurement Range	0 - 100% RH
Humidity Measurement Resolution	0.1% RH
Humidity Sensor Type	Thin film capacitive
Measurement Type	Humidity \| Temperature
Mounting	Wall
Operating Humidity	0-100% RH; non-condensing (will recover from saturation)
Operating Temperature	50 - 95 °F (10 - 35 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output \| Resistive temperature output
Override	No
Product Certification	CE
Product Type	Sensor
Range	HEW
Response Time	110 s (to 90% change @ 20 °C)
Sensor Configuration	Room Only
Sensor	Temp and Humidity 3%
Setpoint	No
Supply Voltage DC Range	12 - 24 VDC
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	1k Ohm Platinum RTD
Warranty	1 year
