HED5MSX | RH | Economy | Duct | 5% | 4-20 | Veris

ABS Plastic +/-5% Accuracy 4 to 20 mA Standard Duct Mount Humidity Sensor

Veris | HED5MSX

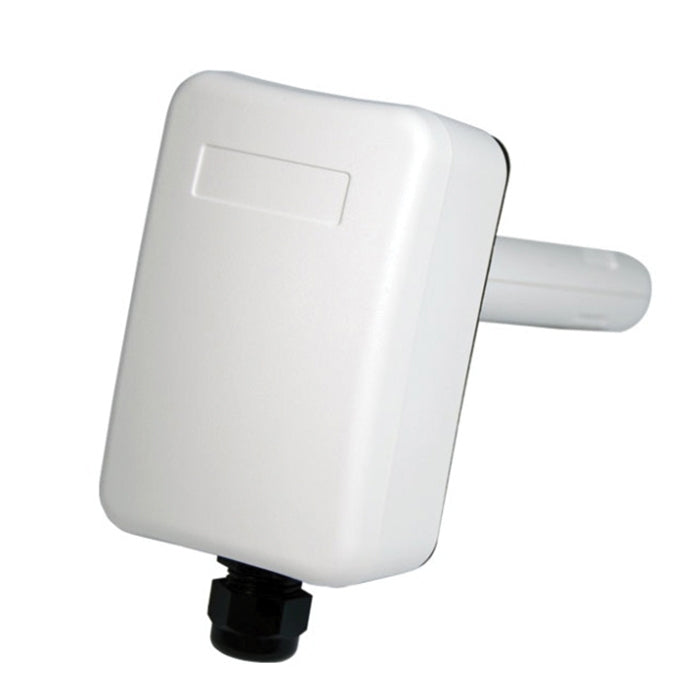

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HED5MSX

Documents and manuals

Overview

Details for HED5MSX

RH | Economy | Duct | 5% | 4-20

HED standard series duct mount humidity transmitters offer high performance in an easy to install housing at an affordable price. The thin-film capacitive sensor element provides high accuracy and performance, great long-term stability, and full recovery from saturation. The duct-mounted HED includes a rugged all plastic housing with a tool-less gasketed entry lid, large cage clamp terminal blocks, and sturdy ABS material. All Standard models come with a standard 1 year warranty.

  • RH - monitor humidity with a single device reduces installation costs
  • Easy hook-up - large cage clamp terminal blocks easy hook-up with no wire nuts
  • Circuitry is embedded in the probe for durability and protection
  • No lost screws - tool-less gasketed entry lid
  • 2-wire, not polarity sensitive
  • Digitally profiled thin-film capacitive, non-removable RH element

Specifications

Item Number HED5MSX
Brand Veris
Application Zone Plant Room
Application Duct
Brand Veris
Color Cloud White
Dimension Depth 2.1" (53 mm)
Dimension Height 4.9" (123 mm)
Dimension Probe Diameter 1.0" (25.4 mm)
Dimension Probe Length 6.1" (155 mm)
Dimension Width 3.2" (82 mm)
Electrical Wiring Size 24 - 14 AWG (0.22 - 2.5 mm²)
Enclosure Material ABS Plastic
Feature Level Economy
Humidity Calibration Certificate None
Humidity Measurement Accuracy ±5%
Humidity Measurement Drift =1% annually
Humidity Measurement Range 0 - 100% RH
Humidity Measurement Resolution 0.1% RH
Humidity Sensor Type Thin film capacitive
Measurement Type Humidity
Mounting Duct
Operating Humidity 0-100% RH; non-condensing (will recover from saturation)
Operating Temperature -40 - 122 °F (-40 - 50 °C)
Output Specifications 4 - 20 mA
Outputs Analog output
Product Certification CE
Product Type Sensor
Range HED
Response Time 110 s (to 90% change @ 20 °C)
Sensor Configuration Duct
Sensor Temp and Humidity 5%
Supply Voltage DC Range 12 - 24 VDC
Temperature Sensor Type None
Warranty 1 year
