HED2VSTD | RH Econ | Duct | 2% | 0-10V | Tmp | 10k T2 | Veris

ABS Plastic +/-2% Accuracy 0 to 5/0 to 10 VDC 10 kOhm T2 Thermistor Standard Duct Mount Humidity and Temperature Sensor

Brand: VerisSKU: HED2VSTD

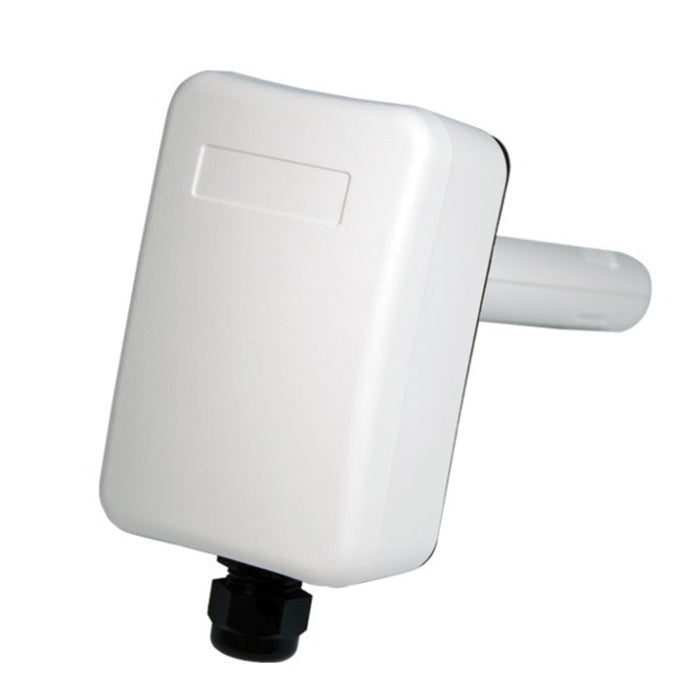

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HED2VSTD

Jump to: Overview & Specifications Reviews

Overview Details for HED2VSTD

HED standard series duct mount humidity transmitters offer high performance in an easy to install housing at an affordable price. The thin-film capacitive sensor element provides high accuracy and performance, great long-term stability, and full recovery from saturation. The duct-mounted HED includes a rugged all plastic housing with a tool-less gasketed entry lid, large cage clamp terminal blocks, and sturdy ABS material. All Standard models come with a standard 1 year warranty.

RH and temperature - monitor humidity and temperature with a single device reduces installation costs
Easy hook-up - large cage clamp terminal blocks easy hook-up with no wire nuts
Circuitry is embedded in the probe for durability and protection
No lost screws - tool-less gasketed entry lid
Digitally profiled thin-film capacitive, non-removable RH element

Specifications

Item Number	HED2VSTD
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Color	Cloud White
Dimension Depth	2.1" (53 mm)
Dimension Height	4.9" (123 mm)
Dimension Probe Diameter	1.0" (25.4 mm)
Dimension Probe Length	6.1" (155 mm)
Dimension Width	3.2" (82 mm)
Electrical Wiring Size	24 - 14 AWG (0.22 - 2.5 mm²)
Enclosure Material	ABS Plastic
Feature Level	Economy
Humidity Calibration Certificate	None
Humidity Measurement Accuracy	±2%
Humidity Measurement Drift	=1% annually
Humidity Measurement Range	0 - 100% RH
Humidity Measurement Resolution	0.1% RH
Humidity Sensor Type	Thin film capacitive
Measurement Type	Humidity \| Temperature
Mounting	Duct
Operating Humidity	0-100% RH; non-condensing (will recover from saturation)
Operating Temperature	-40 - 122 °F (-40 - 50 °C)
Output Specifications	0 - 5 V \| 0 - 10 V
Outputs	Analog output \| Resistive temperature output
Product Certification	CE
Product Type	Sensor
Range	HED
Response Time	110 s (to 90% change @ 20 °C)
Sensor Configuration	Duct
Sensor	Temp and Humidity 2%
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	12 - 30 VDC
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±1.8 °F (±1.0 °C)
Temperature Measurement Range	-58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type	10k Ohm Type 2 Thermistor
Warranty	1 year
