H959 | Current Switch/Relay Combo | Split Core | Adj. | SPST | 9-12VDC Coil | Veris

Hawkeye 2.5 to 135 A Adjustable Trip Point High Voltage Output Current Switch with 12 VDC SPST Relay, Split-Core

Brand: VerisSKU: H959

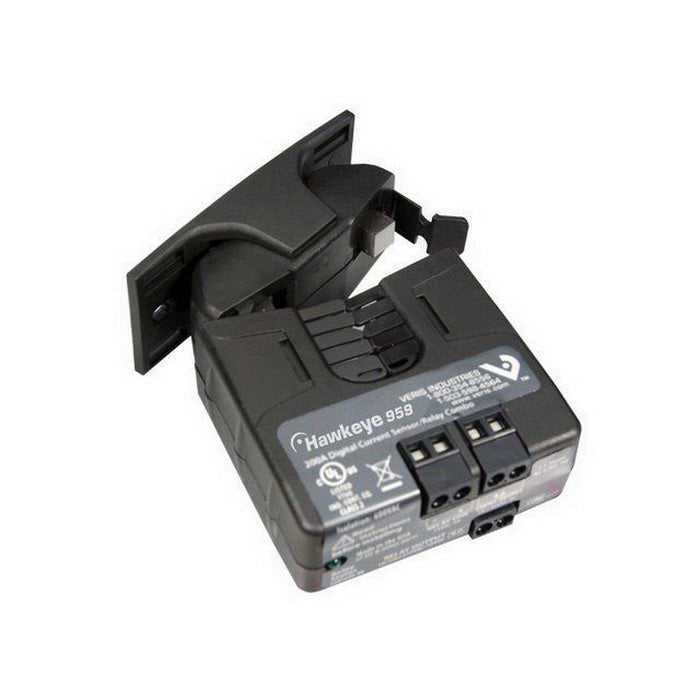

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H959

Jump to: Overview & Specifications Reviews

Overview Details for H959

Hawkeye Relay Combination series high voltage output current switches are the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The integrated current switch and relay operate independently of one another. These products perform the functions of start/stop and status monitoring with one device instead of two.

Combines command relay and fan/pump status sensor in a single, easy-to-install unit
Polarity insensitive status outputs - fast and easy installation
Easy setup - relay and status LEDs
No tubing - easier to install than differential pressure switches
Detect belt loss and motor failure - ideal for fan and pump status
Added flexibility - bracket on H959 can be installed in three different configurations

Specifications

Item Number	H959
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Range	2.5 - 135 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H959
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 0.2A @ 120 VAC/DC
Outputs	Switch output \| Relay
Product Certification	UL \| CE
Product Type	Sensor
Range	HX59 Series
Relay Coil Voltage	12 VDC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 10 A @ 250 VAC \| Resistive: 10 A @ 30 VDC \| Inductive: 5 A @ 250 VAC \| Inductive: 5 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
