H948 | Current Switch/Relay Combo | Split Core | Adj. | SPDT | Veris

Hawkeye 2.5 to 135 A Adjustable Trip Point Current Switch with 24 VAC/VDC SPDT Relay, Split-Core

Brand: VerisSKU: H948

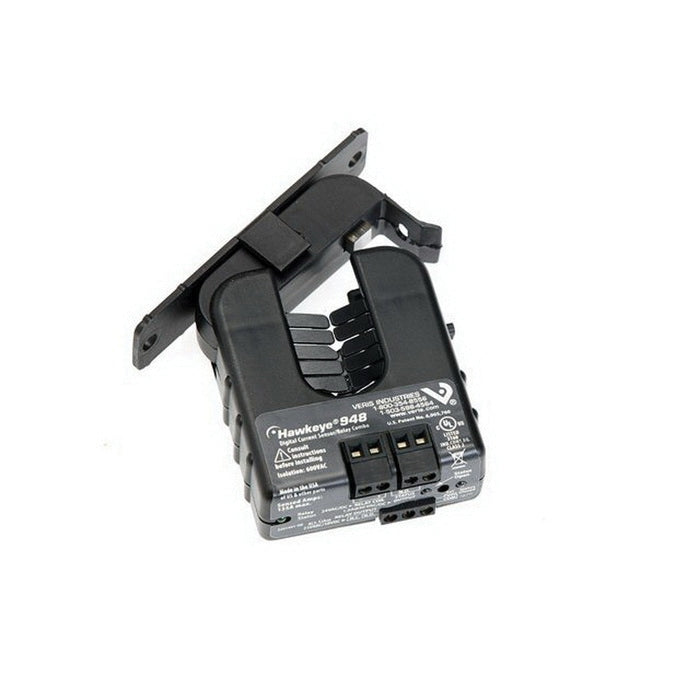

Veris | H948
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H948

Overview Details for H948

The Hawkeye relay combination series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two.

  • Combined relay and status - combines command relay and fan/pump status sensor in a single, easy-to-install unit
  • Fan and pump status - detect belt loss and motor failure ideal for fan and pump status
  • Polarity insensitive status outputs - fast and easy installation
  • Two outputs - H948 feature a SPDT command relay control two outputs with a single relay
  • Added flexibility - bracket on H948 can be installed in three different configurations
  • Easy setup - relay and status LEDs
  • Induced from monitored conductor sensor power

Specifications

Item Number H948
Brand Veris
Application Building Automation Systems
Current Core Split Core
Current Measurement Range 2.5 - 135 A
Current Sensor type Current Switch; AC
Electrical Wiring Size 24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type AC Current
Model H948
Monitored Frequency Range 50 - 60 Hz
Monitored Wire Size 0.8" (21 mm)
Mounting Split Core
Operating Humidity 10 - 90% RH; non-condensing
Operating Temperature 5 - 140 °F (-15 - 60 °C)
Output Specifications N.O. 1 A @ 250 VAC
Outputs Switch output | Relay
Product Certification UL | CE
Product Type Sensor
Range HX48 Series
Relay Coil Voltage 24 VAC/DC
Relay Construction Mechanical
Relay Contact Ratings Resistive: 8 A @ 250 VAC | Resistive: 8 A @ 30 VDC | Inductive: 3.5 A @ 250 VAC | Inductive: 3.5 A @ 30 VDC
Relay Poles/Throw SPDT
Sensor Current Switch (Hawkeye)
Setpoint Adjustable
Warranty 5 years
