H932 | Current Sensor 0-5VDC/Relay Combo | Split Core | SPST | Veris

Hawkeye 0 to 30/60/120 A Input 0 to 5 VDC Output Analog Current Transducer with 24 VAC/VDC SPST Relay, Split-Core, 1.1 x 0.8 in

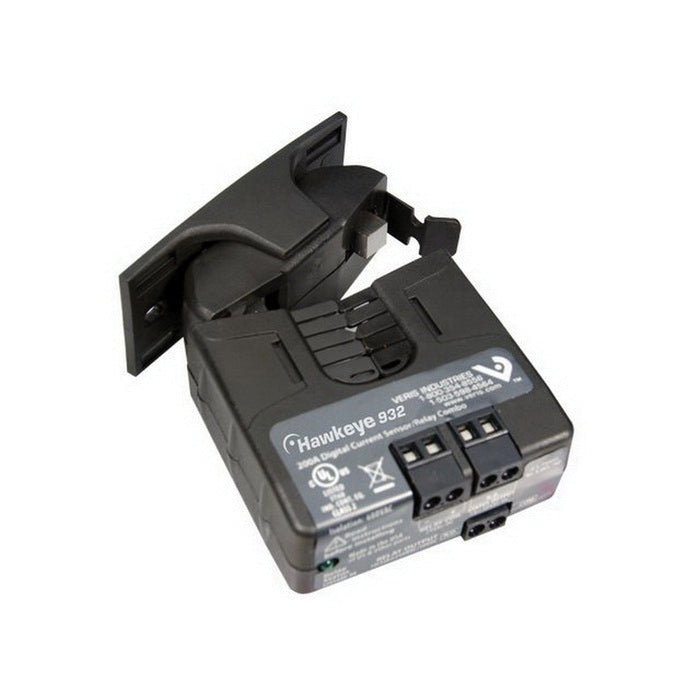

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H932

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H932 Documents

Datasheet Engineering Specs Installation Guide More Info

Overview

Details for H932

Current Sensor 0-5VDC/Relay Combo | Split Core | SPST

Description

Hawkeye x09 Series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps, and other fixed loads.

APPLICATIONS

Detecting belt loss, coupling shear, mechanical failure, and interlocking loads
Verifying lighting circuit and other electrical service run times
Monitoring status of industrial process equipment
Monitoring status of critical motors (compressor, fuel, etc.)
VFD output On/Off status
Fan/pump status monitoring

Specifications

Item Number	H932
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Accuracy	±2% of F.S. above 10% of F.S.
Current Measurement Range	0 - 30 A \| 0 - 60 A \| 0 - 120 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H932
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 5 VDC
Outputs	Analog output \| Relay
Product Certification	UL \| CE
Product Type	Sensor
Range	HX32 Series
Relay Coil Voltage	24 VAC/DC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 5 A @ 250 VAC \| Resistive: 5 A @ 30 VDC \| Inductive: 2 A @ 250 VAC \| Inductive: 2 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
