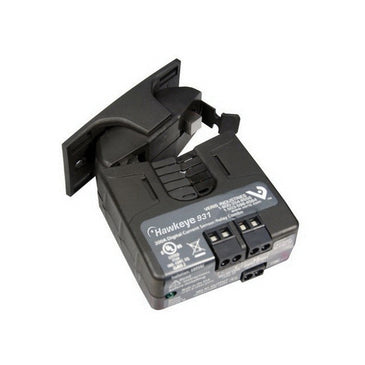

H931 | Current Sensor 4-20mA/Relay Combo | Split Core | SPST | Veris

Hawkeye 0 to 30/60/120 A Input 4 to 20 mA Output Analog Current Transducer with Relay, Split-Core, 1.1 x 0.8 in

Brand: VerisSKU: H931

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H931

Jump to: Overview & Specifications Reviews

Overview Details for H931

The Hawkeye H931 provides accurate load trending information with a proportional 4 to 20 mA output signal. These devices offer three amperage ranges for versatility, with easy slide-switch selection. The command relay is fully integrated in the device, but it is isolated from the current transducer. This combination makes these products ideal for start/stop control and status monitoring of motors, using one device instead of two.

Loop powered analog current transducer with integral start/stop command relay
Reduces the number of installed components, saves time and space
Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
Reduces installation charges - one device to install for start/stop and status
Fewer wires - power the current sensor and receive the 4 to 20 mA signal with only two wires
Selectable factory calibrated ranges up to 120 A for increased flexibility and resolution
30 mA at 12 to 30 VDC sensor power

Specifications

Item Number	H931
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Accuracy	±2% of F.S. above 10% of F.S.
Current Measurement Range	0 - 30 A \| 0 - 60 A \| 0 - 120 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H931
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output \| Relay
Product Certification	UL \| CE
Product Type	Sensor
Range	HX31 Series
Relay Coil Voltage	24 VAC/DC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 5 A @ 250 VAC \| Resistive: 5 A @ 30 VDC \| Inductive: 2 A @ 250 VAC \| Inductive: 2 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
