H923 | SplitCore | Range:0-20 | 0-100 | 0-150AAC | Switch Sel. | Output:0-10V | Veris

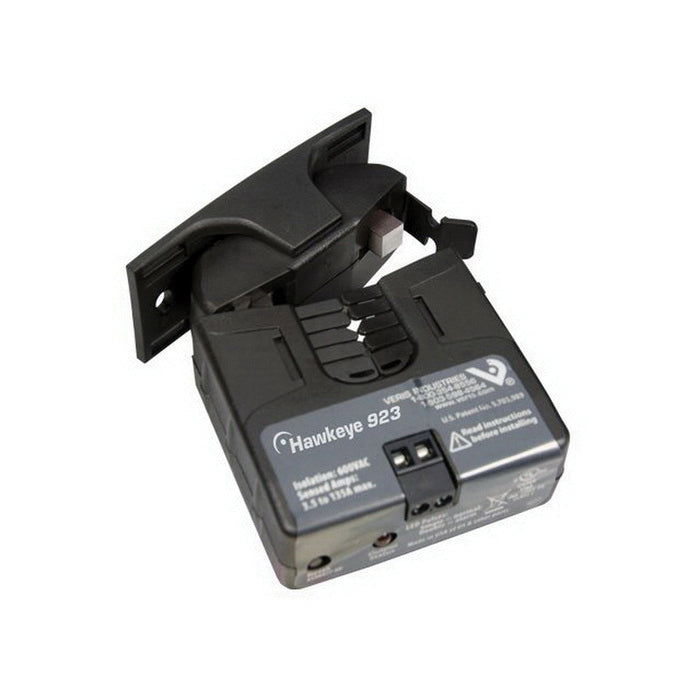

Hawkeye 0 to 20/100/150 A Input 0 to 10 VDC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in

Brand: VerisSKU: H923

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H923

Suggested Alternatives

Senva Sensors C-2344 Analog 0-10VDC, 30/60/120A, split core | Blackhawk Supply

C-2344 | Analog 0-10VDC, 30/60/120A, split core | Senva Sensors

Brand: Senva Sensors

SKU: C-2344

$26.69

ACI A/SCTV2-150 Current Sensor (Split Core) | 0-10 VDC Output | Jumper Selectable Range: 0-50 | 0-100 | 0-150A | Blackhawk Supply

A/SCTV2-150 | Current Sensor (Split Core) | 0-10 VDC Output | Jumper Selectable Range: 0-50 | 0-100 | 0-150A | ACI

Brand: ACI

SKU: A/SCTV2-150

$57.04

Jump to: Overview & Specifications Reviews

Overview Details for H923

The Hawkeye 923 provide accurate load trending information with a proportional 0 to 10 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.

Self-powered analog current sensor simplifies installation
No external power required for sensor
Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
Factory calibrated ranges for increased flexibility and resolution
No jumpers on unit, reduces installation error
Less to stock - one device does the work of three
Removable mounting bracket for installation flexibility
Added flexibility - bracket on H923 can be installed in three different configurations
100% solid-state no moving parts to fail
Induced from monitored conductor sensor power

Specifications

Item Number	H923
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Accuracy	±2% of F.S. above 10% of F.S.
Current Measurement Range	0 - 30 A \| 0 - 60 A \| 0 - 120 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H923
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 10 VDC
Outputs	Analog output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX23 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
