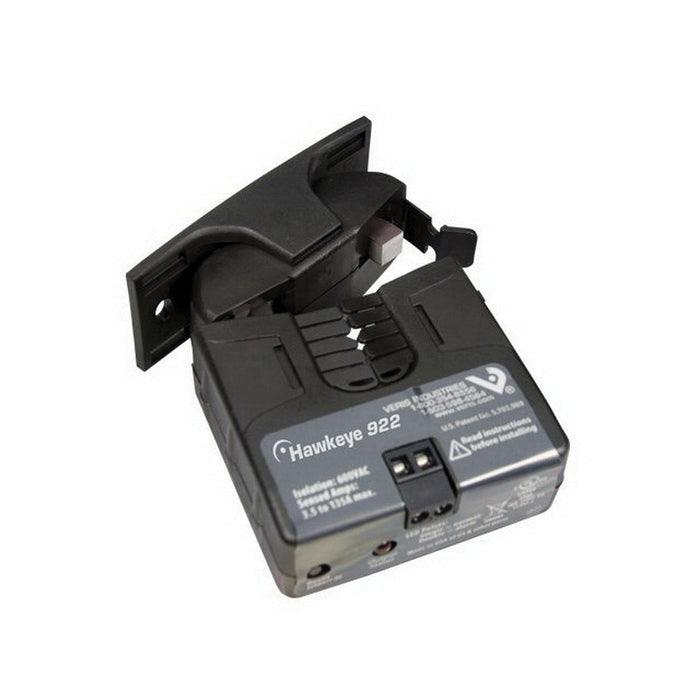

H922030A | Current Transducer | Split-Core | Fxd 0-30A | 0-5VDC | Veris
Hawkeye 0 to 30 A Input 0 to 5 VDC Output Analog Current Transducer, Split-Core, 1.1 x 0.8 in
Documents and manuals
Veris H922030A Documents
Overview
Details for H922030A
Current Transducer | Split-Core | Fxd 0-30A | 0-5VDC
Features
- Self-powered analog current sensor simplifies installation
- No external power required for sensor...no extra power supplies needed
- Self-gripping, split-core design for fast retrofit installation...no need to remove conductor (H922)
- Economical solid-core models feature adjustable bracket for easy alignment (H722xC)
- No jumpers on unit...reduces installation error
- Selectable factory calibrated ranges for increased flexibility and resolution
- Some models available with three field-selectable ranges per unit...fewer versions to choose from, stock, and install
- Mini-sized H822 fits easily in tight enclosures
- Removable bracket on H922 can be installed in three different configurations...added flexibility
- 100% solid state, no moving parts to fail
- Fixed current models...speed installation
- 5-year warranty
Description
The Hawkeye 722, 822, and 922 provide accurate load trending information with a proportional 0-5VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers (available on some models).
Applications
- Load trending
- Motor control
- Positive proof of flow
Specifications
Sensor Power Induced from monitored conductor
Insulation Class 600VAC RMS (UL), 300VAC RMS (CE)
Frequency 50/60 Hz nominal
Temperature Range -15° to 60°C (5° to 140°F)
Humidity Range 10-90% RH non-condensing
Accuracy ±2% F.S. from 10% to 100% (selected range)
Response Time 2 sec.
Terminal Block Wire Size 24-14 AWG (0.2 to 2.1 mm2)
Terminal Block Torque 3.5 to 4.4 in-lbs (0.4 to 0.5 N-m)
Agency Approvals UL 508 open device listing; CE: EN61010-1, CAT
III, pollution degree 2, basic insulation
Specifications
| Item Number | H922030A |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Split Core |
| Current Measurement Accuracy | ±2% of F.S. above 3 A |
| Current Measurement Range | 0 - 30 A |
| Current Sensor type | Current Transducer; AC |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current |
| Model | H922030A |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.8" (21 mm) |
| Mounting | Split Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | 0 - 5 VDC |
| Outputs | Analog output |
| Product Certification | UL | CE |
| Product Type | Sensor |
| Range | HX22 Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Sensor (Hawkeye) |
| Warranty | 5 years |
