H909 | SplitCore | Adj | Calibration LEDs | Range:2.5-135AAC | Output:N.O. | Veris

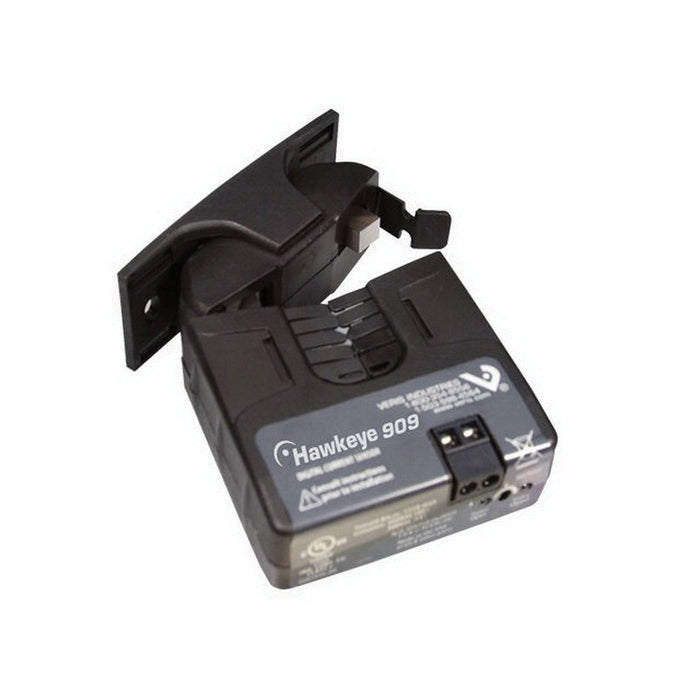

Hawkeye 2.5 to 135 A Adjustable Trip Point High Voltage Output Current Switch with LED Status, Split-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H909
Documents and manuals
Veris H909 Documents
Overview
Details for H909
SplitCore | Adj | Calibration LEDs | Range:2.5-135AAC | Output:N.O.
Hawkeye x09 Series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps, and other fixed loads.Specifications
Item Number | H909 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Range | 1 - 135 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H909 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.8" (21 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 0.2A @ 120 VAC/DC |
Outputs | Switch output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX09 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Switch (Hawkeye) |
Setpoint | Adjustable |
Warranty | 5 years |
