H900 | Split Core | Fixed | Range: 1.5-200AAC | Output: N.O. | 1.0A@30V | Veris

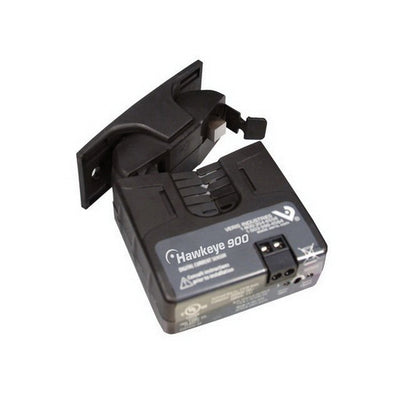

Hawkeye 1.5 to 200 A Fixed Trip Point Current Switch, Split-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H900
Documents and manuals
Veris H900 Documents
Overview
Details for H900
Split Core | Fixed | Range: 1.5-200AAC | Output: N.O. | 1.0A@30V
Hawkeye x00 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H300, H600, and H800 models to achieve impressive improvement in turn-on levels. The Hawkeye H300 and H600 have the lowest turn-on current in the industry at a mere 0.15 A!Specifications
Item Number | H900 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Range | 1.5 - 200 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H900 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.8" (21 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 1 A @ 30 VAC/DC |
Outputs | Switch output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX00 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Switch (Hawkeye) |
Setpoint | Fixed |
Warranty | 5 years |
