H822 | Solid Core | Range: 0-10AAC Factory Set | Output: 0-5VDC | Veris

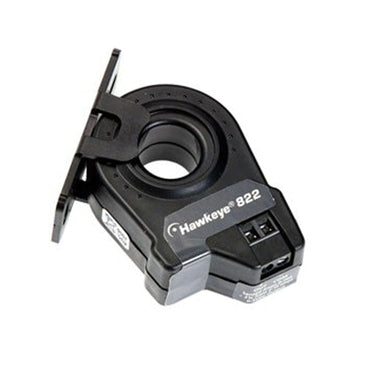

Hawkeye 0 to 10 A Input 0 to 5 VDC Output Analog Current Transducer, Solid-Core, 0.7 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H822
Documents and manuals
Veris H822 Documents
Overview
Details for H822
Solid Core | Range: 0-10AAC Factory Set | Output: 0-5VDC
The Hawkeye 822 provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.
- Self-powered analog current sensor simplifies installation
- No external power required for sensor
- Factory calibrated ranges for increased flexibility and resolution
- No jumpers on unit, reduces installation error
- Induced from monitored conductor sensor power
- Lead-free
Specifications
Item Number | H822 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Solid Core |
Current Measurement Range | 0 - 10 A |
Current Sensor type | Current Transducer; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H822 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.7" (18 mm) |
Mounting | Solid Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | 0 - 5 VDC |
Outputs | Analog output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX22 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Sensor (Hawkeye) |
Warranty | 5 years |
