H822-20 | Solid Core | Range: 0-20AAC Factory Set | Output: 0-5VDC | Veris

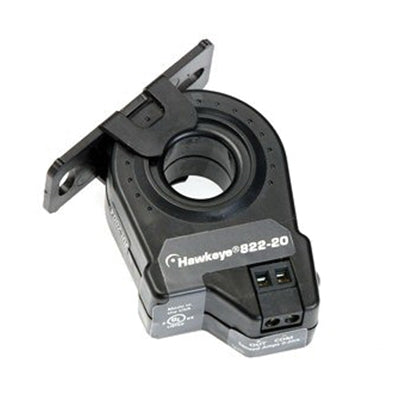

Hawkeye 0 to 20 A Input 0 to 5 VDC Output Analog Current Transducer, Solid-Core, 0.7 in

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H822-20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H822-20 Documents

Datasheet Installation Guide More Info

Overview

Details for H822-20

Solid Core | Range: 0-20AAC Factory Set | Output: 0-5VDC

The Hawkeye 822-20 provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.

Self-powered analog current sensor simplifies installation
No external power required for sensor
Factory calibrated ranges for increased flexibility and resolution
No jumpers on unit, reduces installation error
Induced from monitored conductor sensor power
Lead-free

Specifications

Item Number	H822-20
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	0 - 20 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H822-20
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 5 VDC
Outputs	Analog output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX22 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
