H809 | Mini Solid Core | Adj | Range:0.75-50AAC | N.O. | Output:0.2A@120VAC | Veris

Hawkeye 0.75 to 50 A Adjustable Trip Point High Voltage Output Current Switch, Solid-Core

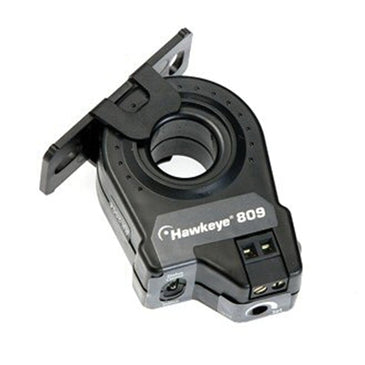

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H809

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H809 Documents

Datasheet Installation Guide More Info

Overview

Details for H809

Mini Solid Core | Adj | Range:0.75-50AAC | N.O. | Output:0.2A@120VAC

Description

Hawkeye x09 Series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps, and other fixed loads.

APPLICATIONS

Detecting belt loss, coupling shear, mechanical failure, and interlocking loads
Verifying lighting circuit and other electrical service run times
Monitoring status of industrial process equipment
Monitoring status of critical motors (compressor, fuel, etc.)
VFD output On/Off status
Fan/pump status monitoring

Specifications

Item Number	H809
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	0.75 - 50 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H809
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 0.2A @ 120 VAC/DC
Outputs	Switch output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX09 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
