H808 | Mini Solid Core | Adj | Range:0.75-50AAC | Output:N.O. | 1.0A@30V | Veris

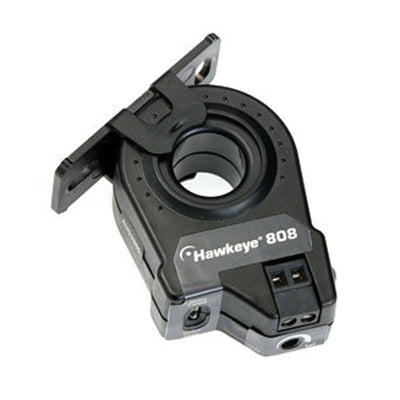

Hawkeye 0.75 to 50 A Adjustable Trip Point Standard Output Current Switch, Solid-Core

Brand: VerisSKU: H808

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H808

Jump to: Overview & Specifications Reviews

Overview Details for H808

Hawkeye H808 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear or other mechanical failure on unit vents, exhaust fans, recirculation pumps and other fixed loads down to as little as 1/5 hp.

Retrofit or new construction - high performance devices in solid-core housings
Adjustable trip point - precise current trip point setting
Low setpoint - minimum trip point as low as 0.75 A, no need for multiple wraps of the conductor through the sensor, even on loads as small as 1/5 hp
Small size - fits easily inside small enclosures
Self-gripping iris on split-core housings for easy installation
Status LEDs - for easy setup and local indication
Induced from monitored conductor sensor power

Specifications

Item Number	H808
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	0.75 - 50 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H808
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 1 A @ 30 VAC/DC
Outputs	Switch output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX08 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
