H806 | Mini Solid Core | Adj | Range:0.75-50AAC | Output:N.C. | 0.1A@30VDC | Veris

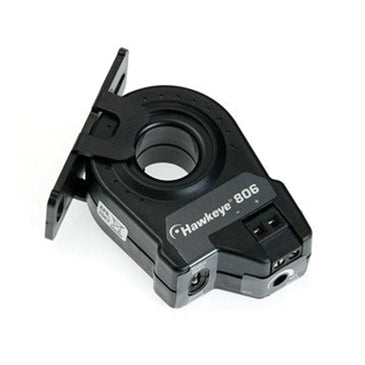

Hawkeye 0.75 to 50 A Adjustable Trip Point Current Switch, Solid-Core

Brand: VerisSKU: H806

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H806

Jump to: Overview & Specifications Reviews

Overview Details for H806

Hawkeye x06 series solid-core current switches provide accurate, reliable and maintenance-free fan and pump status indication where an NC output is needed.

Adjustable trip point - versatility with four available amperage ranges
No tubing necessary - easier to install than differential pressure switches
100% solid-state no moving parts to fail
Output status LEDs for fast set up
Easy placement - adjustable mounting bracket on the solid-core housing
Self-gripping iris on split-core housings for easy installation

Specifications

Item Number	H806
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	0.75 - 50 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H806
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.C. 0.1A @ 30 VDC
Outputs	Switch output
Product Certification	UL
Product Type	Sensor
Range	HX06 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
