H800NC | Solid Core | Fixed | Range: 0.5-200AAC | Output: N.C. | 0.1A@30V | Veris

Hawkeye 0.5 to 200 A Fixed Trip Point Current Switch, Solid-Core

Brand: VerisSKU: H800NC

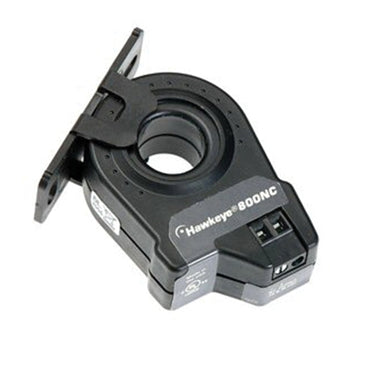

Veris | H800NC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H800NC

Overview Details for H800NC

Hawkeye 800 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H800 model to achieve impressive improvement in turn-on levels.

  • More reliable for status than relays across auxiliary contacts
  • Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
  • Low setpoint - minimum trip point as low as 0.5 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
  • Removable mounting bracket provides installation flexibility
  • Quick installation - solid-core for fast retrofit installation
  • Lead-free
  • 5 to 30 VDC permanently connected sensor power

Specifications

Item Number H800NC
Brand Veris
Application Building Automation Systems
Current Core Solid Core
Current Measurement Range 0.5 - 200 A
Current Sensor type Current Switch; AC
Electrical Wiring Size 24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type AC Current
Model H800NC
Monitored Frequency Range 50 - 60 Hz
Monitored Wire Size 0.7" (18 mm)
Mounting Solid Core
Operating Humidity 10 - 90% RH; non-condensing
Operating Temperature 5 - 140 °F (-15 - 60 °C)
Output Specifications N.C. 0.1A @ 30 VDC
Outputs Switch output
Product Certification UL | CE
Product Type Sensor
Range HX00 Series
Relay Coil Voltage None
Relay Contact Ratings None
Relay Poles/Throw None
Sensor Current Switch (Hawkeye)
Setpoint Fixed
Warranty 5 years
