H800-HV | Solid Core | Fxd | Range:0.75-200AAC | Output:N.O. | 0.5A@250VAC | Veris

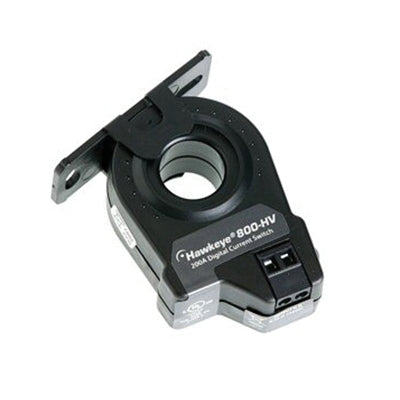

Hawkeye 0.75 to 200 A Fixed Trip Point Current Switch, Solid-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H800-HV
Documents and manuals
Veris H800-HV Documents
Overview
Details for H800-HV
Solid Core | Fxd | Range:0.75-200AAC | Output:N.O. | 0.5A@250VAC
FEATURES
- More reliable for status than relays across auxiliary contacts
- Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
- Low 0.15 A turn-on (H300 and H600)...ideal for small exhaust fans (not intended to detect belt loss)
- Removable mounting bracket provides installation flexibility
- Bracket on H900 can be installed in three different configurations...installer convenience
- Split-core H300, H600, and H900 for fast retrofit installation
- Mini solid-core H800 and micro split-core H300 fit in tight enclosures...saves valuable panel space
- 100% solid-state, no moving parts to fail
- Polarity insensitive output (except H800NC)
- 5-year warranty
APPLICATIONS
- Monitoring status of electrical loads
- Monitoring direct-drive units, exhaust fans, process motors, and other fixed loads
- Verifying lighting run times and lighting status
- VFD output On/Off status
- Direct-Drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
Specifications
Item Number | H800-HV |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Solid Core |
Current Measurement Range | 0.75 - 200 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H800-HV |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.7" (18 mm) |
Mounting | Solid Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | -40 - 122 °F (-40 - 50 °C) |
Output Specifications | N.O. 0.5A @ 250 VAC/DC |
Outputs | Switch output |
Product Certification | UL |
Product Type | Sensor |
Range | HX00 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Switch (Hawkeye) |
Setpoint | Fixed |
Warranty | 5 years |
