H749 | Current Switch/Relay Combo | Solid Core | SPDT | Veris

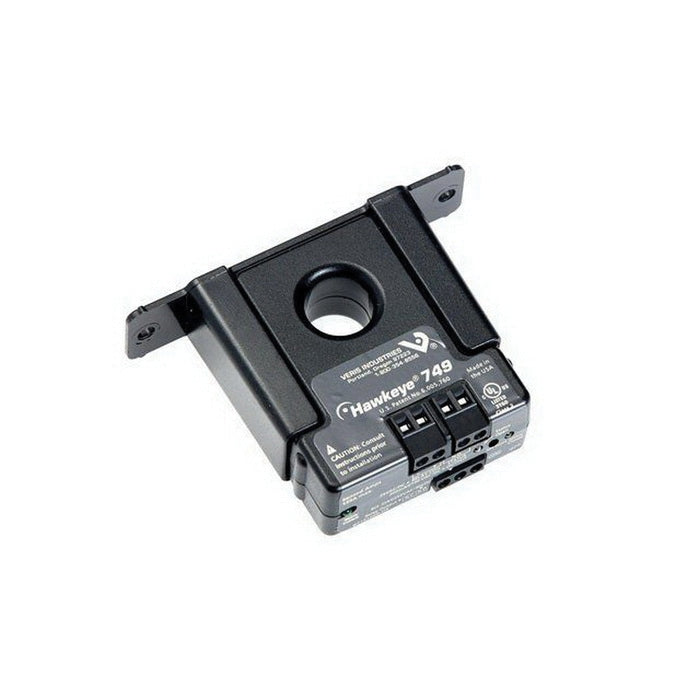

Hawkeye 1 to 135 A Adjustable Trip Point High Voltage Output Current Switch with 24 VAC/VDC SPDT Relay, Solid-Core

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H749

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H749 Documents

Datasheet Installation Guide More Info

Overview

Details for H749

Current Switch/Relay Combo | Solid Core | SPDT

Hawkeye Relay Combination series high voltage output current switches are the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The integrated current switch and relay operate independently of one another. These products perform the functions of start/stop and status monitoring with one device instead of two.

Combines command relay and fan/pump status sensor in a single, easy-to-install unit
Polarity insensitive status outputs - fast and easy installation
Easy setup - relay and status LEDs
No tubing - easier to install than differential pressure switches
Detect belt loss and motor failure - ideal for fan and pump status

Specifications

Item Number	H749
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	1 - 135 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H749
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 0.2A @ 120 VAC/DC
Outputs	Switch output \| Relay
Product Certification	UL
Product Type	Sensor
Range	HX49 Series
Relay Coil Voltage	24 VAC/DC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 10 A @ 250 VAC \| Resistive: 10 A @ 30 VDC \| Inductive: 5 A @ 250 VAC \| Inductive: 5 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
