H740 | Current Switch/Relay Combo | Solid Core | SPDT | Veris

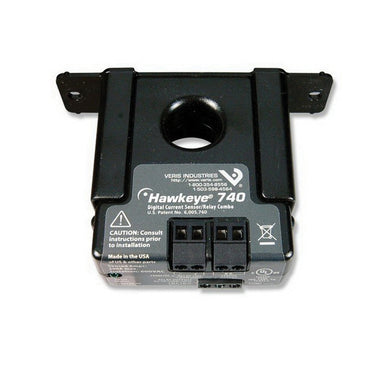

Hawkeye 0.5 to 200 A Fixed Trip Point Current Switch with 24 VAC/VDC SPDT Relay, Solid-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H740
Documents and manuals
Veris H740 Documents
Overview
Details for H740
Current Switch/Relay Combo | Solid Core | SPDT
Description
The Hawkeye Relay Combination Series combines an on/off status sensor and command relay in one package, saving the labor, wire runs, and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.
APPLICATIONS
- Monitoring direct drive units, exhaust fans, and other fixed loads
- Monitoring on/off status of electrical loads
- Starting/stopping motors
Specifications
Item Number | H740 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Solid Core |
Current Measurement Range | 0.5 - 200 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H740 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.7" (18 mm) |
Mounting | Solid Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 1 A @ 30 VAC/DC |
Outputs | Switch output | Relay |
Product Certification | UL |
Product Type | Sensor |
Range | HX40 Series |
Relay Coil Voltage | 24 VAC/DC |
Relay Construction | Mechanical |
Relay Contact Ratings | Resistive: 8 A @ 250 VAC | Resistive: 8 A @ 30 VDC | Inductive: 3.5 A @ 250 VAC | Inductive: 3.5 A @ 30 VDC |
Relay Poles/Throw | SPDT |
Sensor | Current Switch (Hawkeye) |
Setpoint | Fixed |
Warranty | 5 years |
