H739 | Current Switch/Relay Combo | Solid Core | SPST | Veris

Hawkeye 1 to 135 A Adjustable Trip Point High Voltage Output Current Switch with 24 VAC/VDC SPST Relay, Solid-Core

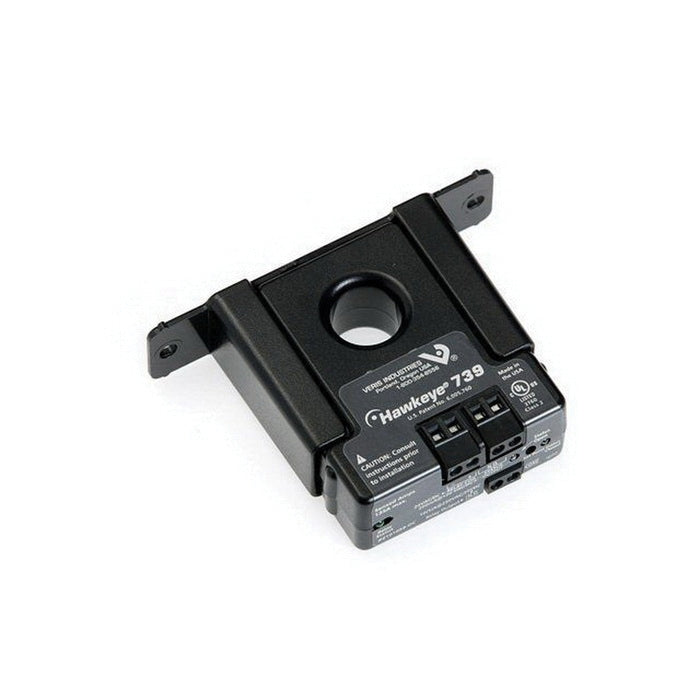

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H739

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H739 Documents

Datasheet Installation Guide More Info

Overview

Details for H739

Current Switch/Relay Combo | Solid Core | SPST

Hawkeye Relay Combination Series high voltage output current switches are the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The integrated current switch and relay operate independently of one another. All relay connections are externally available for maximum flexibility. These products perform the functions of start/stop and status monitoring with one device instead of two.

Specifications

Item Number	H739
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	1 - 135 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H739
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 0.2A @ 120 VAC/DC
Outputs	Switch output \| Relay
Product Certification	UL
Product Type	Sensor
Range	HX39 Series
Relay Coil Voltage	24 VAC/DC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 10 A @ 250 VAC \| Resistive: 10 A @ 30 VDC \| Inductive: 5 A @ 250 VAC \| Inductive: 5 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
