H723LC | Current Sensor | Solid | 0-10/20/40A | 10V | Veris

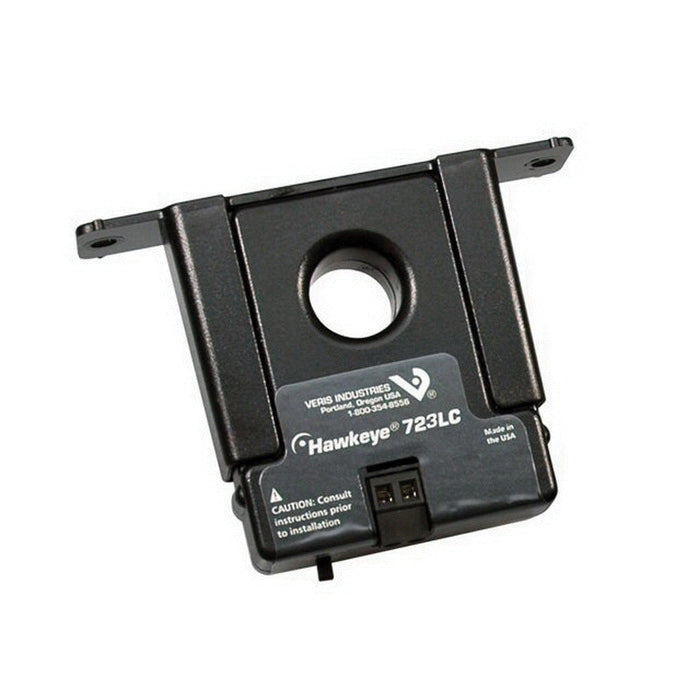

Hawkeye 0 to 10/20/40 A Input 0 to 10 VDC Output Analog Current Transducer, Solid-Core, 0.7 in
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H723LC
Documents and manuals
Veris H723LC Documents
Overview
Details for H723LC
Current Sensor | Solid | 0-10/20/40A | 10V
Description
The Hawkeye 723LC, 723HC, and H923 Series provide accurate load trending information with a proportional 0-10VDC output signal. Devices offer three amperage range options, with slide-switch selection for easy field adjustment – no need for jumpers.
APPLICATIONS
- Load trending
- Motor control
- Fan/pump status
Specifications
Item Number | H723LC |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Solid Core |
Current Measurement Accuracy | ±2% of F.S. or 0.4 A; whichever is greater; above 10% of F.S. |
Current Measurement Range | 0 - 10 A | 0 - 20 A | 0 - 40 A |
Current Sensor type | Current Transducer; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H723LC |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.7" (18 mm) |
Mounting | Solid Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | 0 - 10 VDC |
Outputs | Analog output |
Product Certification | CE |
Product Type | Sensor |
Range | HX23 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Sensor (Hawkeye) |
Warranty | 5 years |
