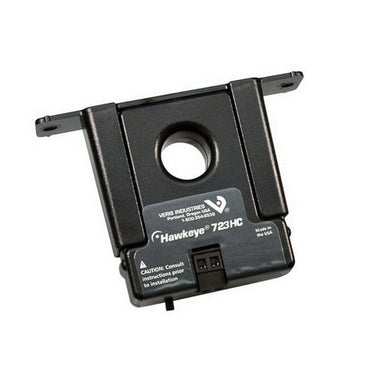

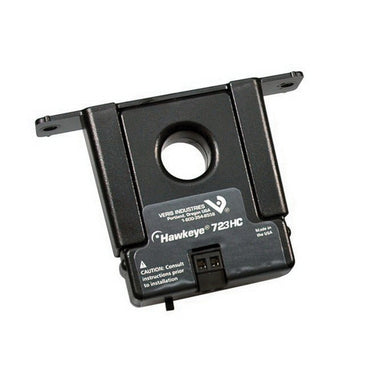

H723HC | Current Sensor | Sol | 0-50/100/200A | 10V | Veris

Hawkeye 0 to 50/100/200 A Input 0 to 10 VDC Output Analog Current Transducer, Solid-Core, 0.7 in

Brand: VerisSKU: H723HC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H723HC

Jump to: Overview & Specifications Reviews

Overview Details for H723HC

The Hawkeye H723HC series provide accurate load trending information with a proportional 0 to 10 VDC output signal. slide-switch selection for easy field adjustment - no need for jumpers.

Self-powered analog current transducer 0 to 10 VDC output
Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
No jumpers on unit, reduces installation error
No external power required for sensor
Factory calibrated ranges for high resolution and installation ease
Induced from monitored conductor sensor power

Specifications

Item Number	H723HC
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Accuracy	±2% of F.S. above 10% of F.S.
Current Measurement Range	0 - 50 A \| 0 - 100 A \| 0 - 200 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H723HC
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 10 VDC
Outputs	Analog output
Product Certification	CE
Product Type	Sensor
Range	HX23 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
