H722LC | SolidCore | Range:0-10 | 0-20 | 0-40AAC Sw Select | Output:0-5VDC | Veris

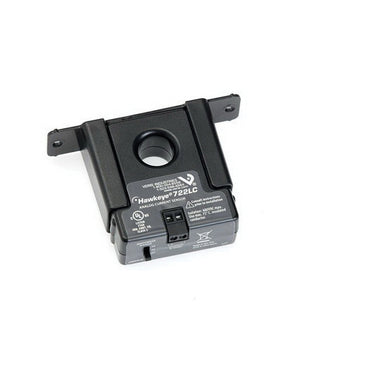

Hawkeye 0 to 10/20/40 A Input 0 to 5 VDC Output Analog Current Transducer, Solid-Core, 0.7 in

Brand: VerisSKU: H722LC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H722LC

Suggested Alternatives

Senva Sensors C-1203 Analog 0-5VDC, 0-15A, solid core - mini | Blackhawk Supply

C-1203 | Analog 0-5VDC, 0-15A, solid core - mini | Senva Sensors

Brand: Senva Sensors

SKU: C-1203

$21.78

ACI A/CTE2-50 Current Sensor (Solid Core) | 0-5 VDC Output | Jumper Selectable Range: 0-10 | 0-20 | 0-50A | Blackhawk Supply

A/CTE2-50 | Current Sensor (Solid Core) | 0-5 VDC Output | Jumper Selectable Range: 0-10 | 0-20 | 0-50A | ACI

Brand: ACI

SKU: A/CTE2-50

$46.91

Functional Devices RIBXKTV5-20 Enclosed Solid-Core Transducer, 0-20Amp, 0-5Vdc, terminals | Blackhawk Supply

RIBXKTV5-20 | Enclosed Solid-Core Transducer, 0-20Amp, 0-5Vdc, terminals | Functional Devices

Brand: Functional Devices

SKU: RIBXKTV5-20

$23.65

Jump to: Overview & Specifications Reviews

Overview Details for H722LC

The Hawkeye 722LC provide accurate load trending information with a proportional 0 to 5 VDC output signal. Slide-switches provide easy field selection of monitored amperage range without jumpers.

Self-powered analog current sensor simplifies installation
No external power required for sensor
Factory calibrated ranges for increased flexibility and resolution
No jumpers on unit, reduces installation error
New construction - economical solid-core models feature adjustable bracket for easy alignment
Induced from monitored conductor sensor power

Specifications

Item Number	H722LC
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Accuracy	±2% of F.S. or 0.4 A; whichever is greater; above 10% of F.S.
Current Measurement Range	0 - 10 A \| 0 - 20 A \| 0 - 40 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H722LC
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 5 VDC
Outputs	Analog output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX22 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
