H721 | SolidCore,Span Adj,Range:0-55 AAC,Poten. Adj,Output:4-20mA | Veris

Hawkeye 0 to 10/20/40 A Input 4 to 20 mA DC Output Analog Current Transducer, Split-Core, 0.7 in

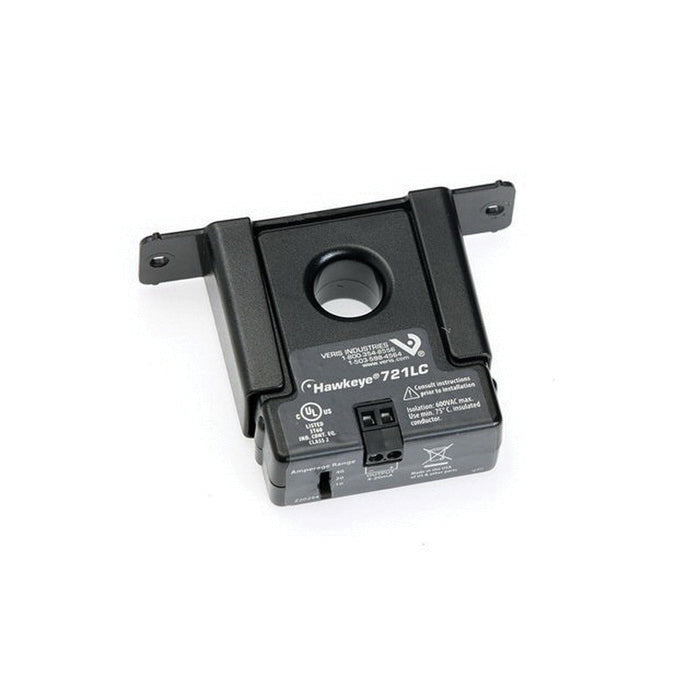

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H721

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H721 Documents

CE Declaration Datasheet Engineering Specs Installation Guide More Info

Overview

Details for H721

SolidCore,Span Adj,Range:0-55 AAC,Poten. Adj,Output:4-20mA

The Hawkeye H721LC provide accurate load trending information with a proportional 4 to 20 mA output signal. Preset slide switches provide easy field setup of sensed amperage range with no need for jumpers.

Power the sensor, and receive the signal with only 2-wires, lower cabling and commissioning costs than with traditional 3-wire sensors
Economical solid-core features adjustable bracket for easy alignment
Factory calibrated switch-selectable ranges for high resolution and installation ease
Three field-selectable ranges per unit, fewer versions to choose from, stock, and install
Removable mounting bracket for installation flexibility
100% solid-state no moving parts to fail
30 mA at 12 to 30 VDC sensor power

Specifications

Item Number	H721
Brand	Veris
Application	Building Automation Systems
Current Measurement Accuracy	±2% of F.S. or 0.4 A; whichever is greater; above 10% of F.S.
Current Measurement Range	0 - 10 A \| 0 - 20 A \| 0 - 40 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H721LC
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX21 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Warranty	5 years
