H720 | Solid Core | Span Adj. | VFD | Range: 0-200AAC | Output:4-20mA | Veris

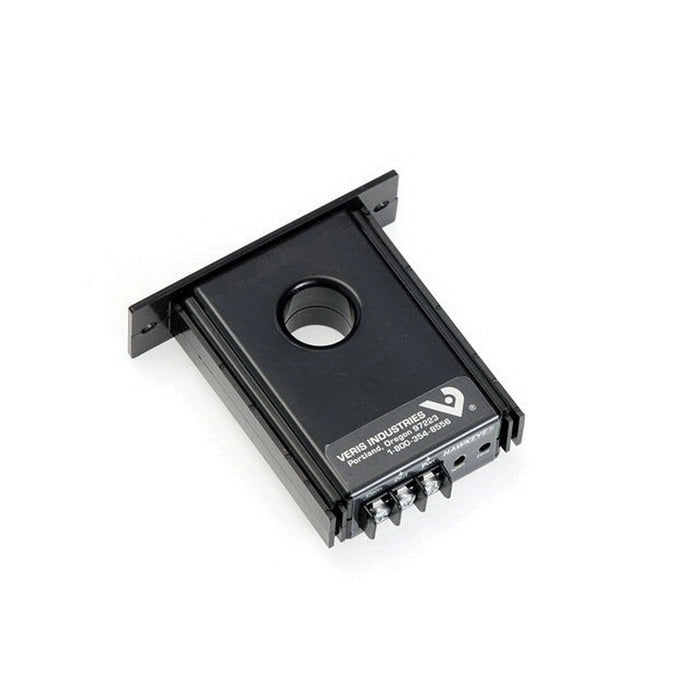

Hawkeye 4 to 20 mA Solid-Core VFD Current Sensor
Documents and manuals
Veris H720 Documents
Overview
Details for H720
Solid Core | Span Adj. | VFD | Range: 0-200AAC | Output:4-20mA
Features
- Analog output
- Accurate to 0.5% of full scale
- Suitable for load side monitoring of VFDs
- Adjustable zero and span for precise scaling
- Adjustable mounting bracket for easy placement
Description
Hawkeye 904, 934, and 720 current monitoring devices provide unique solutions for accurately monitoring status of motors controlled by variable frequency drives. The microprocessor-based H904 & H934 store the sensed amperage values for normal operation at various frequency ranges in non-volatile memory. This information allows the device to distinguish between a reduced amp draw due to normal changes in the frequency and an abnormal amp drop due to belt loss or other mechanical failures. The relay on the H934 is isolated from the current switch, and all relay connections are externally accessible on the device. The H720 analog output corresponds to current in the monitored conductor from 10 to 80 Hz.
Applications
- Monitoring positive status on motors controlled by variable frequency drives
- Replacing pressure switches
- Measuring current and load trending
Specifications
| Item Number | H720 |
| Brand | Veris |
| Application | Building Automation Systems |
| Current Core | Solid Core |
| Current Measurement Accuracy | ±1 A |
| Current Measurement Range | 0 - 200 A |
| Current Sensor type | Current Transducer; VFD |
| Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type | AC Current | VFD |
| Model | H720 |
| Monitored Frequency Range | 50 - 60 Hz |
| Monitored Wire Size | 0.7" (18 mm) |
| Mounting | Solid Core |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
| Output Specifications | 4 - 20 mA |
| Outputs | Analog output |
| Product Certification | UL |
| Product Type | Sensor |
| Range | VFD Series |
| Relay Coil Voltage | None |
| Relay Contact Ratings | None |
| Relay Poles/Throw | None |
| Sensor | Current Sensor (Hawkeye) |
| Warranty | 5 years |
