H709 | Solid Core | Adj. | Calibration LED's | Range:1-135AAC | 120VAC | Veris

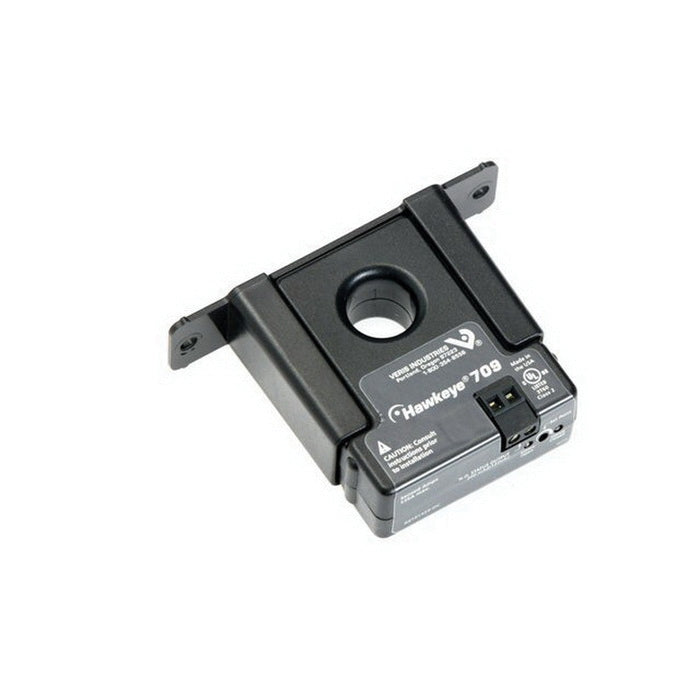

Hawkeye 1 to 135 A Adjustable Trip Point High Voltage Output Current Switch with LED Status, Solid-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H709
Documents and manuals
Veris H709 Documents
Overview
Details for H709
Solid Core | Adj. | Calibration LED's | Range:1-135AAC | 120VAC
Description
Hawkeye x09 Series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps, and other fixed loads
APPLICATIONS
- Detecting belt loss, coupling shear, mechanical failure, and interlocking loads
- Verifying lighting circuit and other electrical service run times
- Monitoring status of industrial process equipment
- Monitoring status of critical motors (compressor, fuel, etc.)
- VFD output On/Off status
- Fan/pump status monitoring
Specifications
Item Number | H709 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Solid Core |
Current Measurement Range | 1 - 135 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H709 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.7" (18 mm) |
Mounting | Solid Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 0.2A @ 120 VAC/DC |
Outputs | Switch output |
Product Certification | UL |
Product Type | Sensor |
Range | HX09 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Switch (Hawkeye) |
Setpoint | Adjustable |
Warranty | 5 years |
