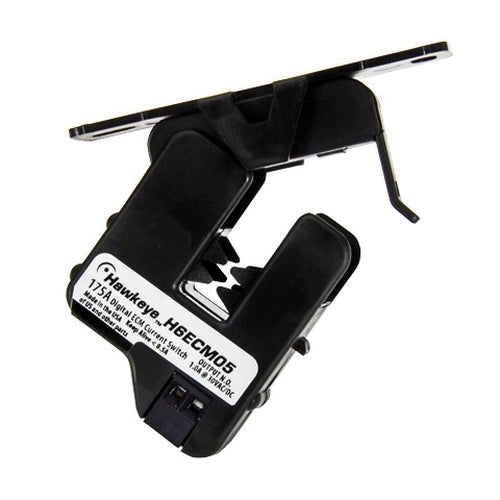

Hawkeye 0.5 to 175 A ECM-Optimized Current Switch, Split-Core
Overview Details for H6ECM05
The H6ECM is a current-sensitive switching device that monitors current (amperage) in the conductor passing through it. A change in amperage in the monitored conductor that crosses the switch (setpoint) causes the resistance of the FET status output to change state, similar to the action of a mechanical switch. The status output is suitable for connection to building controllers or other appropriate data acquisition equipment operating at up to 30 V. The product requires no external power supply to generate its output. Electrically commutated motors (ECMs) are increasingly common as more energy conservation measures are implemented. The ECM is a brushless DC motor that is supplied AC power, converts that power to DC current and uses electronic switching to control the motor rotation. The ECM motor shaft speed can be reduced to save energy, resulting in lower cost and less component wear. The H6ECM is optimized to provide meaningful proof of rotation which verifies that the ECM motor is operating as expected.
- High performance device, split-core housing
- Precise current trip point setting
- Small size - fits easily inside small enclosures
- Self-gripping iris for easy installation
- Status LEDs - for easy setup and local indication
- Up to 1 A status output - increased application flexibility
- Induced from monitored conductor sensor power
Specifications
Item Number | H6ECM05 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Accuracy | ±2% of F.S. from 10 - 100% of F.S. |
Current Measurement Range | 0.5 - 175 A |
Current Sensor type | Current Transducer; AC; ECM |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current | ECM |
Model | H6ECM05 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.5" (12 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 1 A @ 30 VAC/DC |
Outputs | Switch output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | ECM Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Sensor (Hawkeye) |
Setpoint | Fixed |
Warranty | 5 years |
