H6812-1600A-5AU | CT | SplitCore | Instrument Grade | 5.5in x 2.5in ID | 1600A to 5A | Veris
1600 A Input 5A Output Current Transformer, Split-Core, 1.16" x 2.47 " (Large), UL2808 Listed

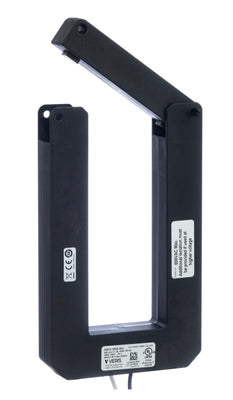

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H6812-1600A-5AU
Documents and manuals
Veris H6812-1600A-5AU Documents
Overview
Details for H6812-1600A-5AU
CT | SplitCore | Instrument Grade | 5.5in x 2.5in ID | 1600A to 5A
Veris split-core current transformers provide a 0 to 5A AC output.
- Easy installation - unique hinge design on split cores
- 5 A standard output, compatible with existing systems
- UL2808 Listed
- Not suitable for wet locations, for indoor use only
Specifications
Item Number | H6812-1600A-5AU |
Brand | Veris |
Accuracy | Meets or exceeds accuracy requirements specified in IEC 61869-2; Table 201; Class 1 |
Current Core | Split Core |
Current Measurement Range | 0 - 1600 A |
Dimensions | 4.91” (125 mm) W x 8.12” (206 mm) L x 1.16” (30 mm) H |
Environmental Conditions | Humidity Range: 0 to 95% Non-Condensing; Storage Temperature: -40 to 158 °F |
Frequency Rating | 50 - 60 Hz |
Mounting | Split-Core |
Operating Temperature | 5 - 140 °F |
Output Specifications | 5 A |
Product Type | Current Transformer |
Range | H681X-5A |
Sensor | Current Sensor (Hawkeye) |
